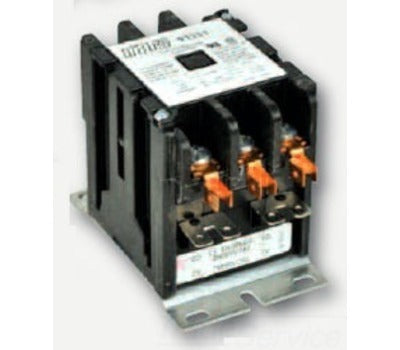

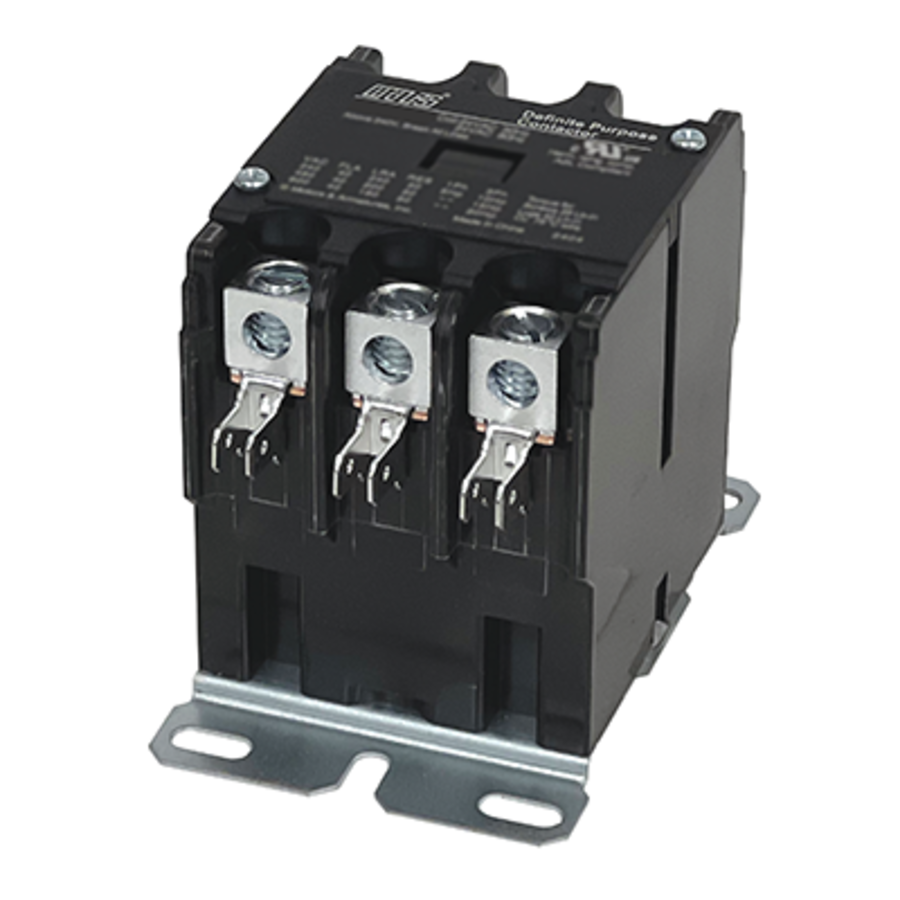

MARS 91432 Contactor 110/120V 40 Amp 3-Pole Definite Purpose 910

Product Description

MARS offers the 91432 Contactor, designed for reliable operation in refrigeration, air conditioning, and heating systems. This model supports voltages of 110/120V and has a rating of 40 amp with three poles. It is part of the Spring Stocking series by MARS.

• Universal mounting base eases installation
• Box lug terminations simplify connections
• Contact cover reduces dirt and insect intrusion

Product Highlights

The MARS 91432 is suitable for multiple applications, ensuring high performance even in challenging environments.

Product Information

Standard Information

• Brand: MARS
• Part Number: 91432

Technical Specifications

• Current Rating: 40 amp inductive, 50 amp resistive
• Voltage Rating: 120 V ac at 50/60 Hz
• Number Of Poles: 3
• Mechanical Life: 1,000,000 cycles
• Contact Material: Silver cadmium
• Horsepower Rating: 5 HP at 240 V (1-Phase), 10 HP at 240 V (1-Phase); 15 HP at 480 V (3-Phase), 20 HP at 600 V (3-Phase)
