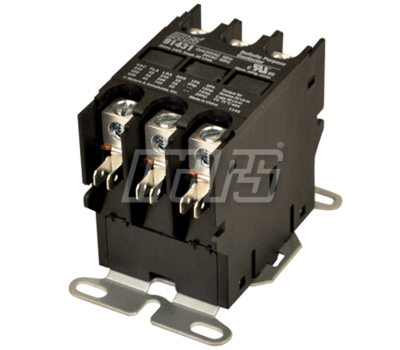

Mars 91335 3 Pole Definite Purpose Contactor 24V 30A

Product Description

The Mars 91335 3 Pole Definite Purpose Contactor is engineered for use in refrigeration, air conditioning, and electric heating systems. This product is designed for commercial refrigeration and HVAC applications.

• Quieter operation with enclosed body
• High performance with copper and brass conductors
• Field replaceable coils

Product Highlights

The Mars 91335 3 Pole Definite Purpose Contactor provides reliable operation for commercial refrigeration and HVAC systems. The compact design and universal mounting base simplify installation. Features include high-performance copper and brass conductors, and an enclosed body for a quieter operation.

Product Information

Standard Information

• Brand: Mars
• MPN: 91335

Technical Specifications

• Amperage: 30A
• Voltage: 24V
• Poles: 3
• UPC: 685744913351
• Width: 2.4 inches
• Height: 2.81 inches
• Length: 3.69 inches
• Weight: 0.85 lb
• Connection Type: Box Lug
• Mechanical Life: 1000000 cycles
• Contact Material: Silver Cadmium
• Horsepower Rating: 1-Phase: 3 HP at 240 V, 7.5 HP at 240 V; 3-Phase: 10 HP at 480 V, 15 HP at 600 V
• Specifications Met: cULus Listed, Meets ARI 780/790
