Mars 90343 Power Relay 19.2 VAC Pick-Up 4.8 VAC Drop Out 60 Hz

Product Description

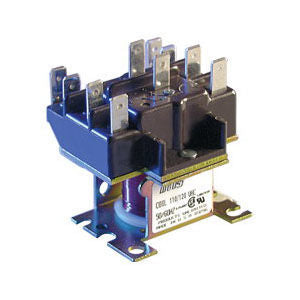

The Mars 90343 power relay is designed for HVAC applications. It operates at a pick-up voltage of nineteen point two volts AC and drops out at four point eight volts AC. This relay features a twenty-four volt AC coil and is suitable for heating and refrigeration systems.

• Two quick-connect terminals on the coil
• Designed for easy replacement of competitive relays
• Includes molded terminal numbers and circuit diagram on top

Product Highlights

This relay is CSA certified and UL listed, ensuring reliability in HVAC applications.

Product Information

Standard Information

• Manufacturer: Mars
• MPN: 90343

Technical Specifications

• Coil Voltage: 24 VAC
• Dimensions: 2.13 inches L x 1.88 inches W x 2.25 inches D
• Voltage Rating: 19.2 VAC Pick-Up, 4.8 VAC Drop Out, 60 Hz
• Amperage Rating: 25 A at 277 VAC Resistive, 15 A at 277 VAC Inductive
• Mounting Type: Flange
• Terminal Type: Quick Connect
• Contact Configuration: DPDT
