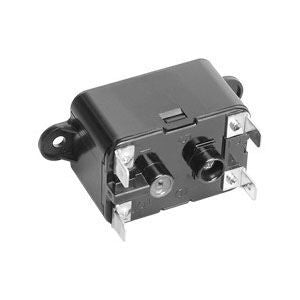

Mars 90294 Power Relay 102 VAC Pick-Up 24 VAC Drop Out 60 Hz

Product Description

The Mars 90294 Power Relay is designed for HVAC applications. This relay operates at a pick-up voltage of 102 VAC and a drop-out voltage of 24 VAC. It features a coil rated for 208/240 volts and is suitable for 60 Hz systems. This relay is an SPDT (Single Pole Double Throw) configuration, making it versatile for various installations.

• Flange mount for secure installation
• Features quick connect terminals for easy wiring
• Packaged with instructions for installation and cross-referencing

Product Highlights

The Mars 90294 is effective in air conditioning and heating systems. It replaces multiple previous models, ensuring compatibility and reliability.

Product Information

Standard Information

• Manufacturer: Mars
• MPN: 90294

Technical Specifications

• Series: 903
• Dimensions: 2.38 Inch L x 1.63 Inch W x 1.5 Inch D
• Coil Voltage: 208/240 V
• Mounting Type: Flange
• Terminal Type: 1/4 Inch Quick Connect
• Voltage Rating: 102 VAC Pick-Up, 24 VAC Drop Out, 60 Hz
• Amperage Rating: 18 A
