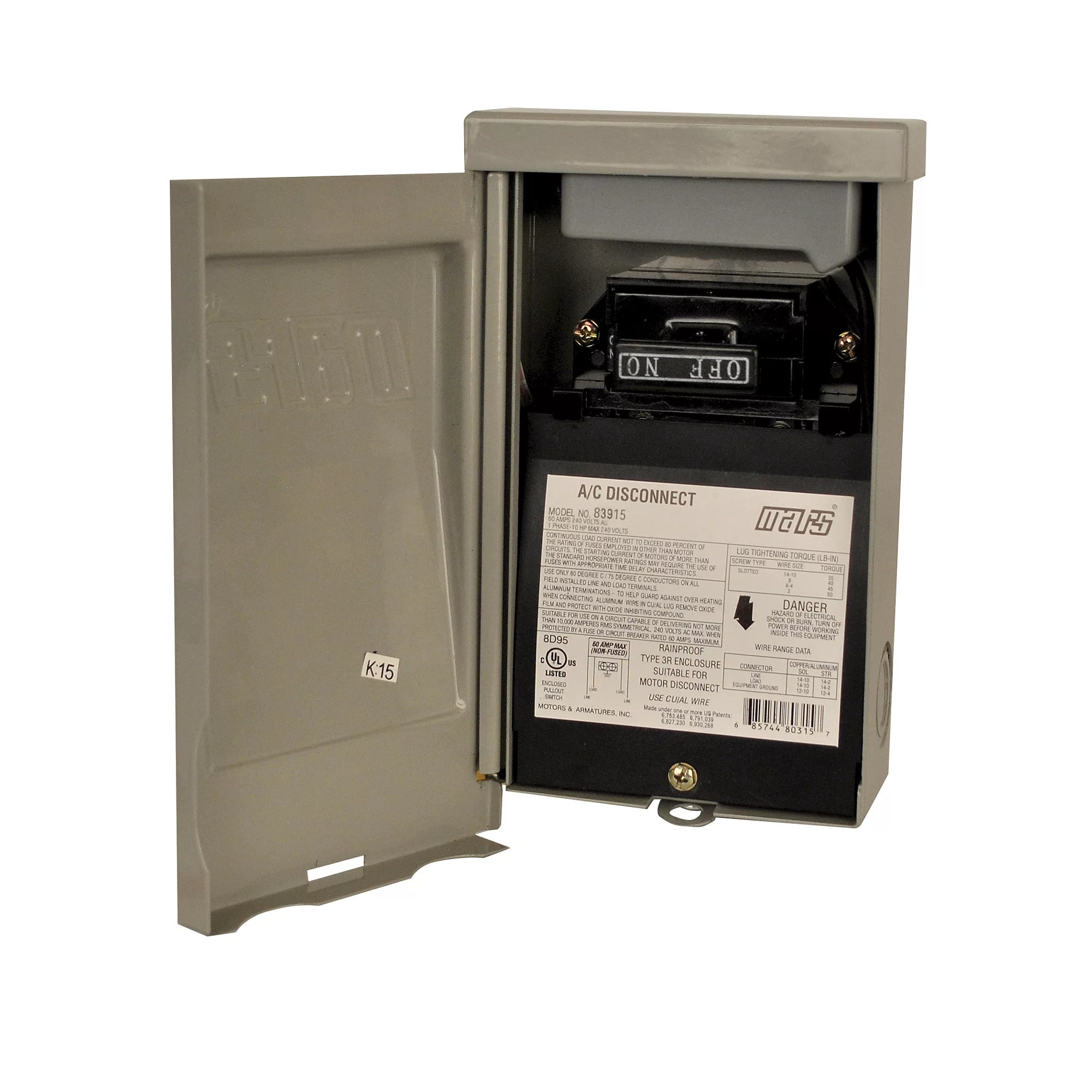

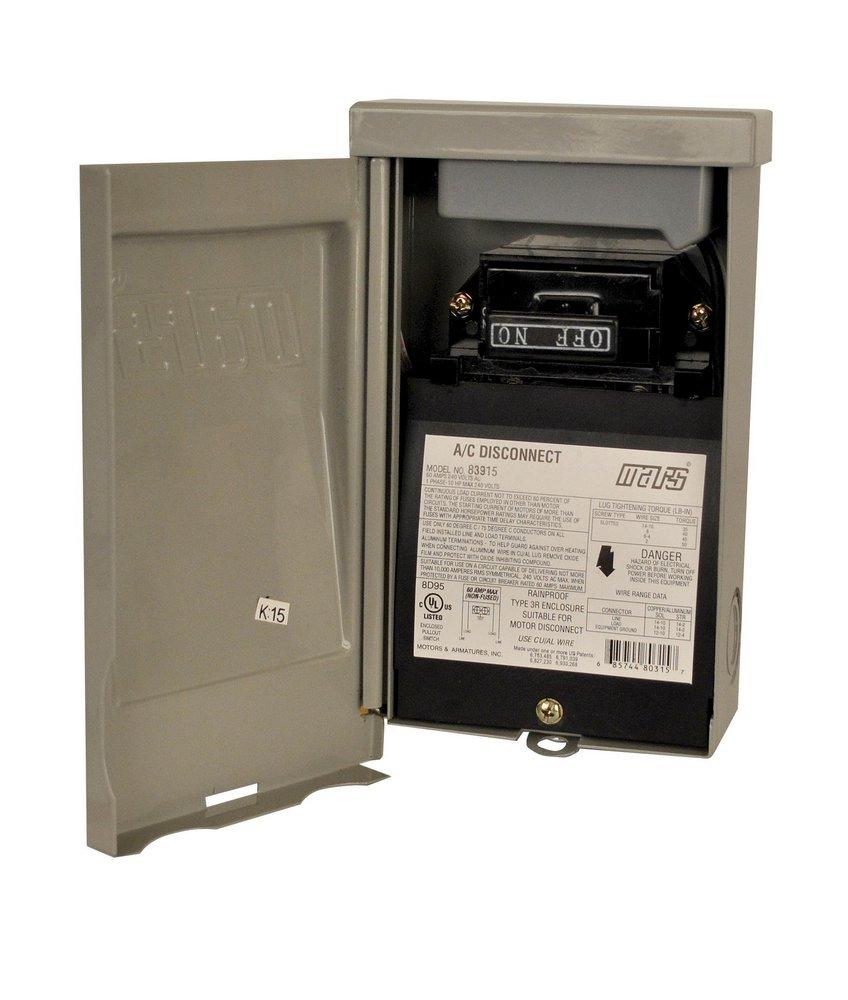

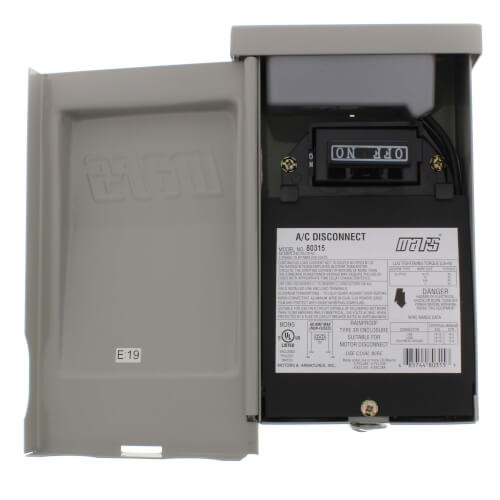

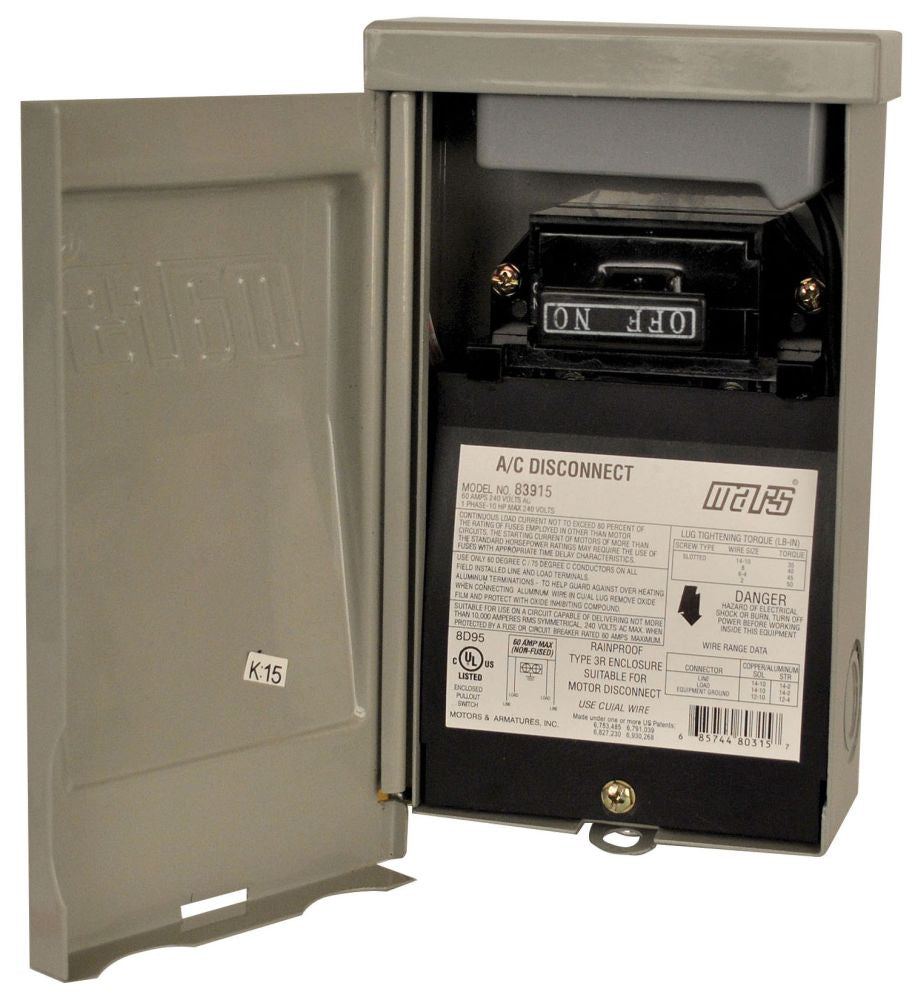

Mars 83915 Non-Fused Disconnect With Surge Protector 60A (Side Open) MAR83915

Product Description

The Mars 83915 is a 60 Amp non-fused disconnect with an integrated surge protector (model 83910) designed for single-phase 240V HVAC and air conditioner applications. The unit features a side-opening door, powder-coated UV-rated metal enclosure and rainproof NEMA 3R protection for outdoor installation. It includes an internal SPD with thermally protected MOVs, external LED status indication, and is UL and CUL listed for HVAC service and equipment protection.

• 60 Amp non-fused disconnect for single-phase 240V systems; two-pole configuration for HVAC applications
• Integrated internal surge protector (model 83910) with thermally protected MOVs and 10,000 amp rating
• Powder-coated UV-rated metal NEMA 3R enclosure with side-opening access and external LED status indicator; UL and CUL listed

Product Highlights

60A non-fused HVAC disconnect with internal surge protection, side-open NEMA 3R enclosure, and UL/CUL listings

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 83915
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 83915
• Brand: Mars
• Product Type: Non-Fused Disconnect with Surge Protector
• Phase: Single-phase
• Input Voltage: 240 V AC
• Current Rating: 60 A
• Number of Poles: 2
• NEMA Enclosure Rating: 3R (rainproof)
• Enclosure Material: Powder-coated UV-rated metal (cold rolled steel)
• Dimensions (H x W x D): 8.66 in x 5.12 in x 2.25 in
• Weight: 3.38 lb
• Surge Protector Included: Yes (model 83910)
• Surge Type: Internal SPD (Type 1 or Type 2)
• Surge Rating: 10,000 Amp (10 kA Imax — manufacturer-stated surge current rating)
• Surge Component Protection: Thermally protected MOVs
• Indicator: External LED status indicator
• Opening / Access: Side-opening door / pull-out surge module
• Wire Configuration: L1, L2, Ground (manufacturer lists L1, L2, L/N-G — see notes)
• Certifications: UL 98; UL 508; CULus listed
• UL Listed: Yes
• CUL Listed: Yes
