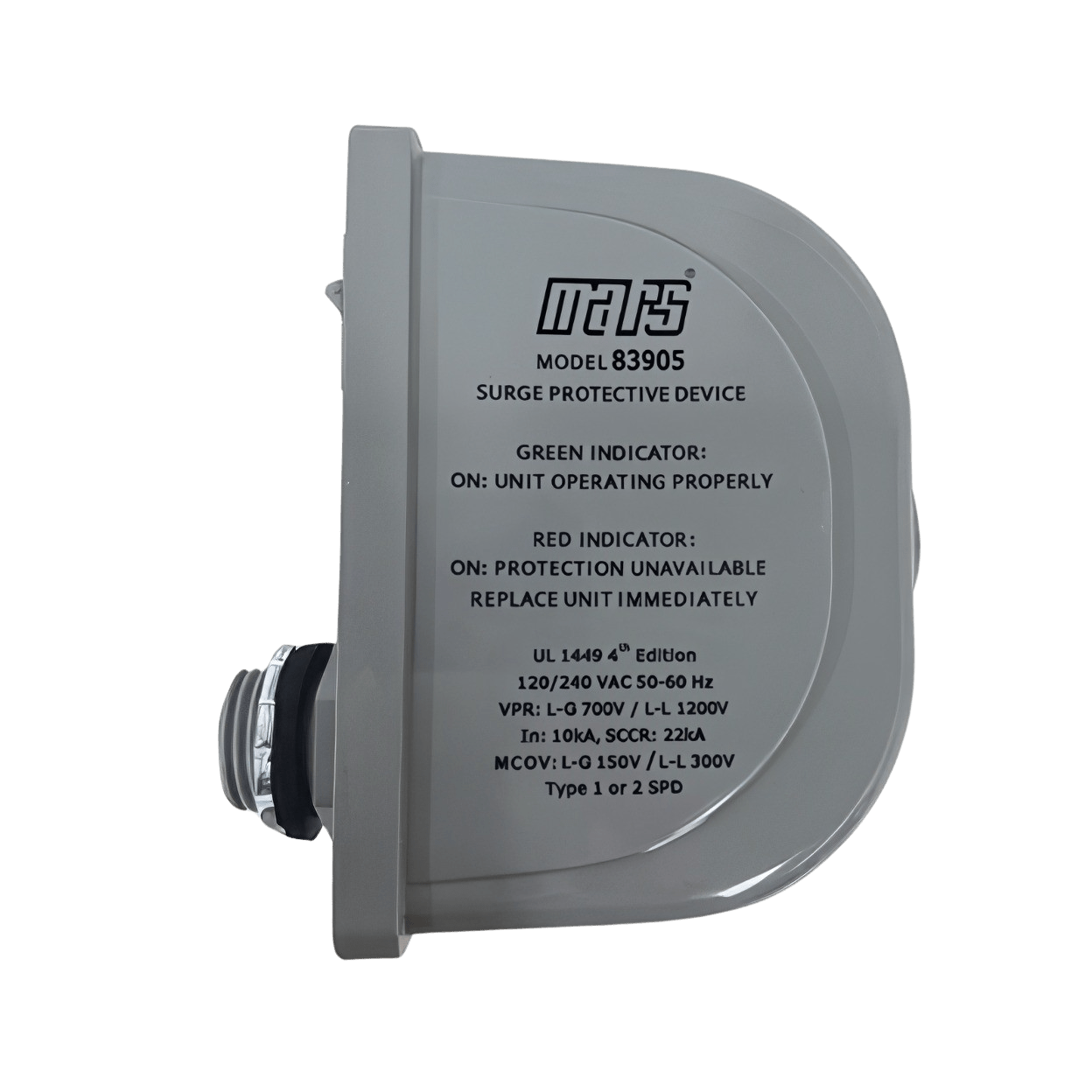

MARS 83905 Mars 20000A 120/240VAC 50/60 Hz 1-Phase Surge Protective Device

Product Description

The MARS surge protective device, model 83905, offers essential protection for HVAC systems against power surges and spikes. It is designed for use with voltage ratings of 120/240VAC and an ampere rating of 20000A. This device is suitable for 1-phase systems with a frequency rating of 50/60 Hz. The device supports easy installation, specifically using a half-inch by twenty threaded nipple for mounting. It comes with pre-stripped leads of 18 inches in length and a wire gauge of 10 AWG. The MARS model ensures safety and reliability with a NEMA 4X rating.

• Designed for HVAC equipment protection
• Compatible with compressors, heat pumps, and control boards
• Includes LED status indicators

Product Highlights

This device safeguards your HVAC equipment from electrical fluctuations that can cause damage and lead to costly repairs. Its thermally protected MOV technology enhances reliability and safety.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 83905

Technical Specifications

• Item Name: Surge Protective Device
• Voltage Rating: 120/240VAC
• Ampere Rating: 20000A
• Phase: 1-Phase
• Frequency Rating: 50/60 Hz
• Mounting: 1/2 inch x 20 Threaded Nipple
• Wire Gauge: 10 AWG
• NEMA Rating: NEMA 4X
• Applications: For Compressors, Heat Pumps, Ductless Systems, Inverter Boards, Control Boards, Transformers, Relays, Sensors
• Standards/Approvals: UL 1449 4th Edition cULus Listed
• Wire Configuration: L1, L2, L/N-G
