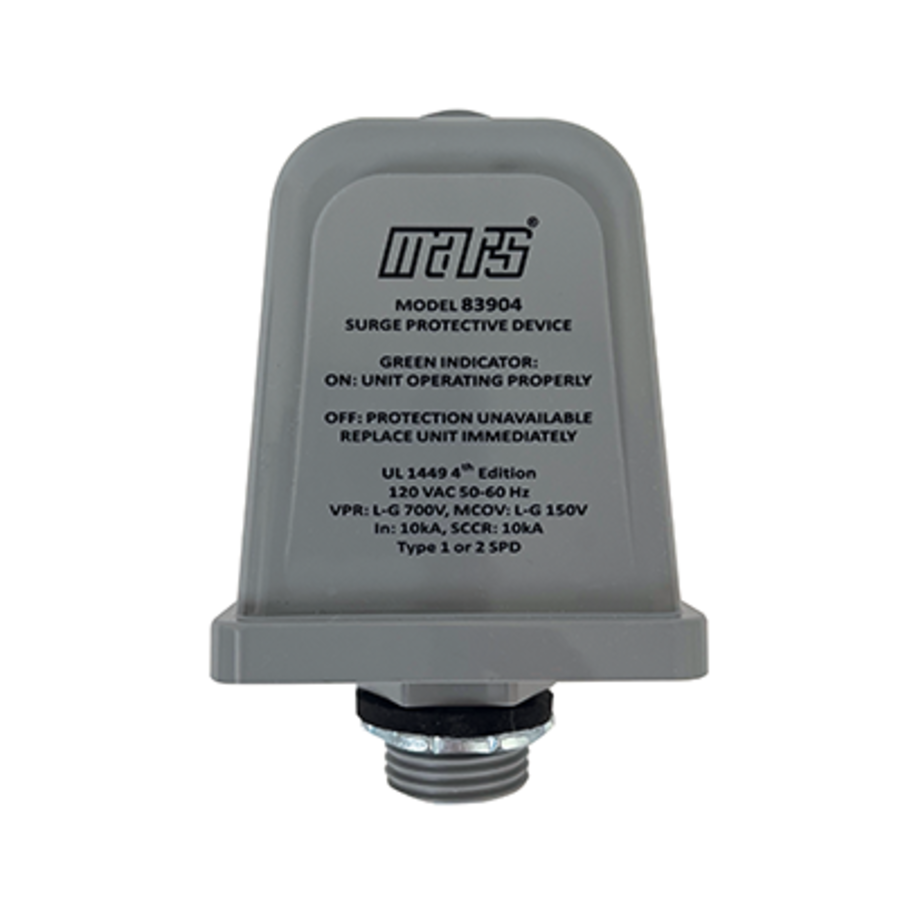

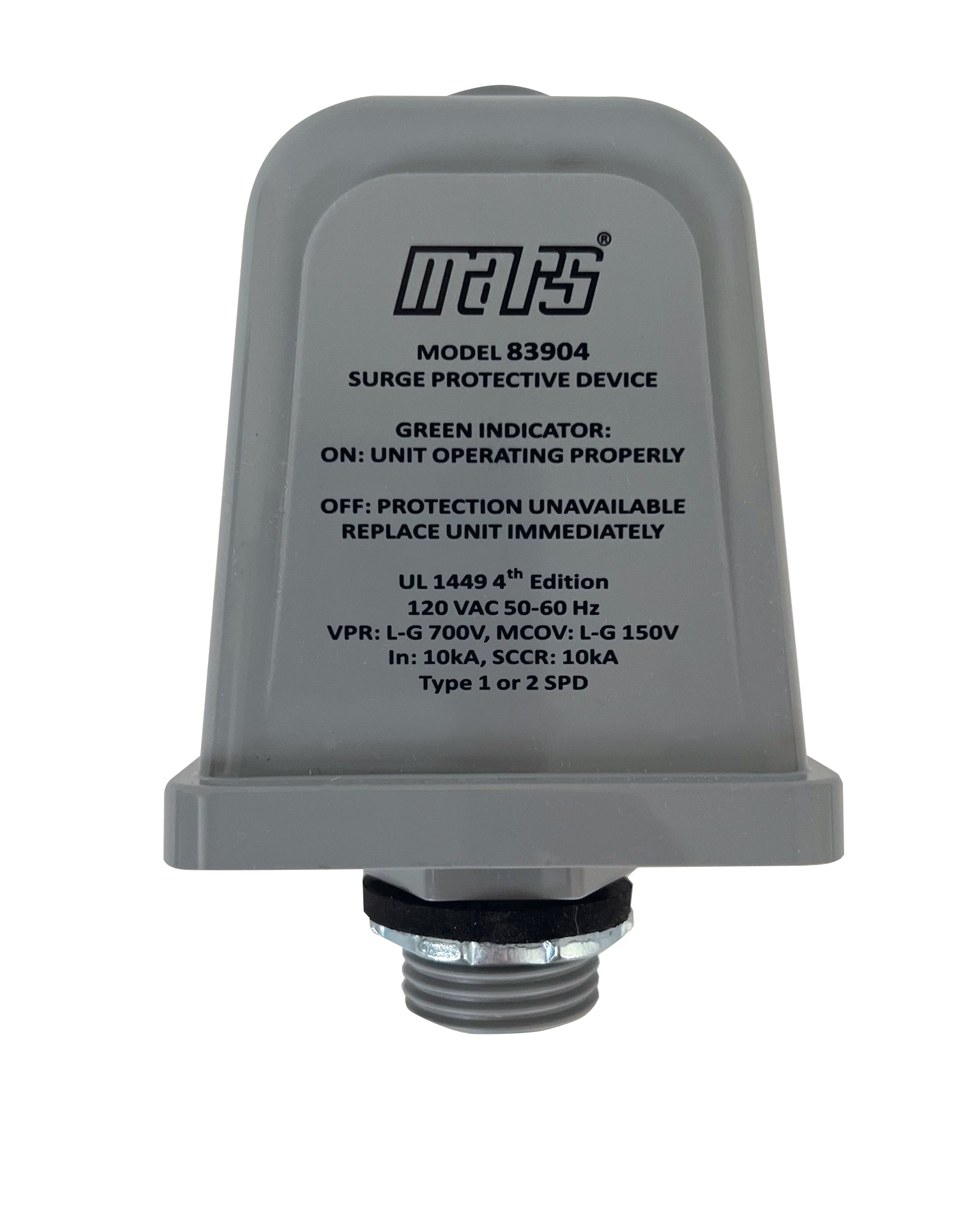

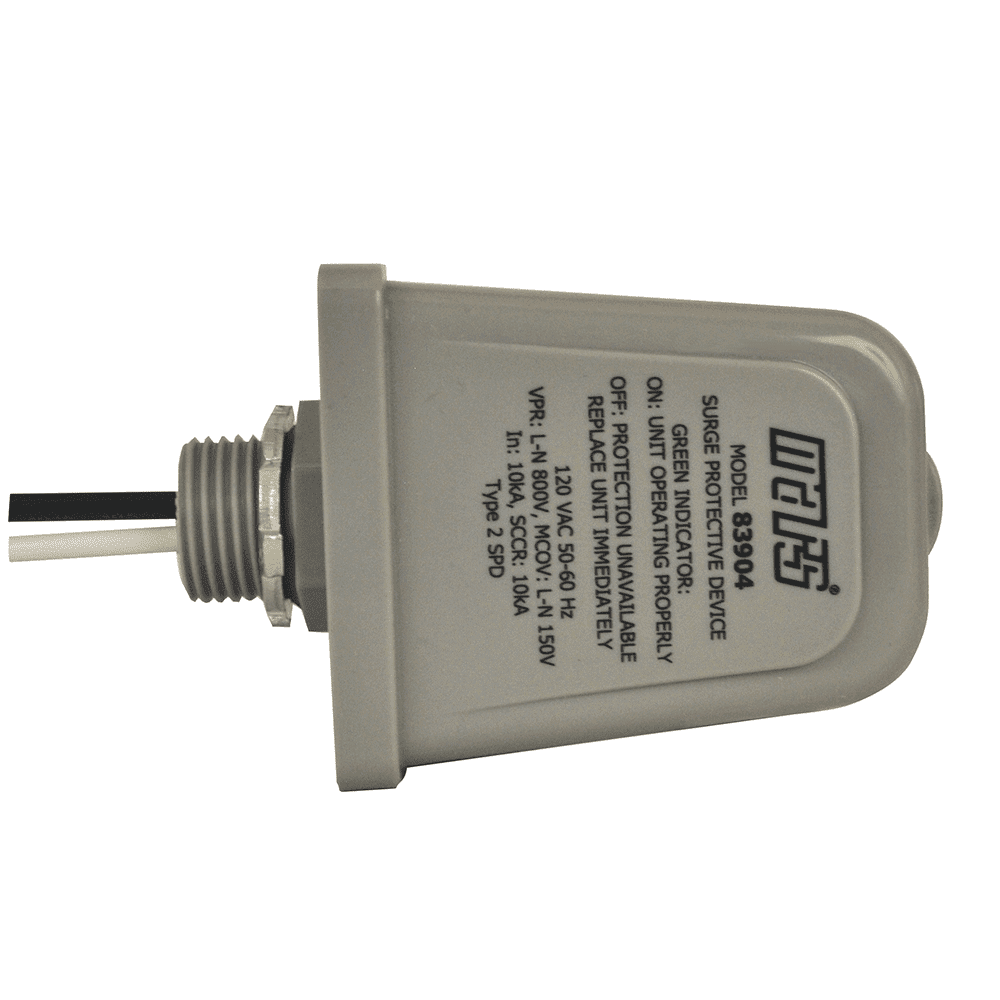

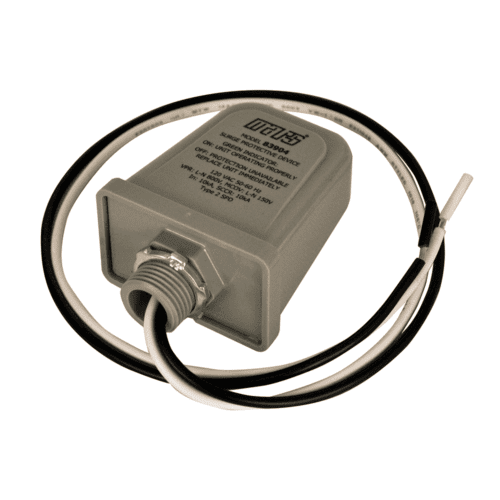

Mars 83904 120V Single Phase Furnace Surge Protector (8in Leads)

Product Description

MARS 83904 is a 120V single-phase surge protection device for furnaces, air handlers, and other HVAC equipment. It uses thermally protected MOVs to provide line-to-neutral surge suppression with a 700V voltage protection rating (VPR) and 150V MCOV (L-N). The unit features a green LED status indicator, simple two-wire installation through a 1/2 inch knockout, and is rated for 50/60 Hz operation with a 10,000 amp short-circuit rating.

• Thermally protected MOV array providing L-N surge protection (VPR 700V, MCOV 150V)
• Simple two-wire hookup with 8 in. 12 AWG pre-stripped leads and fits 1/2 in knockout
• UL 1449 listed (Type 1/2), 50/60 Hz operation, 10,000 A short-circuit rating

Product Highlights

120V single-phase HVAC surge protector with thermally protected MOVs, green LED status indicator, 8 in. pre-stripped leads, UL 1449 listing, and 10 kA short-circuit rating.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 83904

Technical Specifications

• Brand: MARS
• MPN: 83904
• Product Type: Surge protection device (SPD)
• Intended Application: Furnaces; air handlers; HVAC equipment
• Voltage: 120 V
• Phase: Single phase
• Frequency: 50/60 Hz
• Modes of Protection: Line-to-neutral (L-N)
• Voltage Protection Rating (VPR) L-N: 700 V
• MCOV (L-N): 150 V
• MOVs: Thermally protected MOV array
• Status Indicator: Green LED
• Installation Wiring: Simple two-wire installation
• Leads: 8 in. 12 AWG pre-stripped leads
• Mounting: Fits 1/2 in knockout; includes nipple and locknut
• UL Listing: UL 1449 listed (4th Edition referenced in sources)
• SPD Type: Type 1 or Type 2
• Short Circuit Current Rating: 10,000 Amps
• Enclosure Type: NEMA 2
• Dimensions (Overall Length x Width x Depth): 4.5 in x 2.9 in x 1.8 in
• Ground Resistance Recommendation: NEC recommended maximum ground resistance not to exceed 25 ohms
• Maximum Circuit Capability: Circuit capable of delivering not more than 10,000 RMS amperes at 120 V per line
• Intended Use / Environment: Indoor use
• Serviceable Parts: None (contains no serviceable parts)
• Lightning Protection: Does not protect against direct lightning strikes
• Installation Requirement: Installation and service by a qualified licensed electrician
• UPC: 685744839040
• Connection Type: Two-wire with pre-stripped leads
• SCCR: 10 kA
