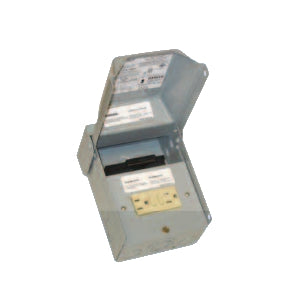

Mars 83308 Disconnect P-Out Non-Fused 60 AMP with 15 AMP 120 Volt Receptacle 5x7x4 Inch Steel

Product Description

The Mars 83308 is a disconnect designed for safe electrical connections in HVAC applications. It features a non-fused pull-out type suitable for up to sixty amps. Ideal for residential and light commercial use, this disconnect includes a fifteen amp GFCI duplex receptacle. The compact size of five inches by seven inches by four inches and galvanized steel construction makes it durable.

• Non-fused, pull-out design for easy operation
• Includes 15 AMP, 120 Volt GFCI duplex receptacle
• NEMA 3R rated for weather-tight protection

Product Highlights

This disconnect meets NEC Article 210.63 and Article 406.8(B)(1) standards. It is suitable for HVAC/R equipment outlets and wet locations. Its removable cover allows for straightforward maintenance, and the electro-deposition finish enhances its resistance to corrosion.

Product Information

Standard Information

• Brand: Mars
• Product Type: Non-Fused 60 AMP with 15 AMP 120 Volt Receptacle

Technical Specifications

• Size: 5 x 7 x 4 inches
• Material: Steel
• Shipping Weight: 5.000 LBS
• Voltage: 240 Volts
• Amperage: 60 Amps
