MARS 79340 Micro Gear Hose Clamp 4 7/32 to 5/8 Diameter

Product Description

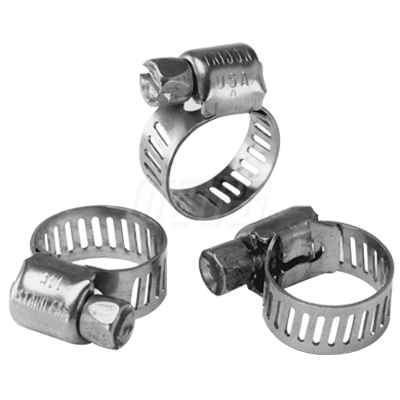

The MARS 79340 Micro Gear Hose Clamp is a reliable tool for securing hoses and tubes. This clamp is designed to fit diameters from seven thirty-seconds inches to five eighths inches, conforming to SAE size number four. It features a band width of five sixteenths inches and is tightened using a one-quarter inch screw. Made from 300 series stainless steel, including the band, housing, and screw, it provides strong resistance to corrosion. With twenty-three slots in the band, it offers flexibility for installation. The clamp can handle an ultimate torque of twenty inch-pounds, ensuring secure fastening.

• Worm-gear clamp design for secure fastening.
• Fits hoses from seven thirty-seconds inches to five eighths inches.
• Constructed from 300 series stainless steel for corrosion resistance.

Product Highlights

Product Information

Standard Information

• Clamp Type: Worm-Gear, Type M
• SAE No.: 4

Technical Specifications

• Min. Diameter: 7/32 inches
• Max. Diameter: 5/8 inches
• Band Width: 5/16 inches
• Screw Size: 1/4 inches
• Ultimate Torque: 20 in-lbs
• Number of Band Slots: 23
• Band Material: 300 SS
• Housing Material: 300 SS
• Screw Material: 300 SS
