MARS 7591 Condenser Fan Blade

Product Description

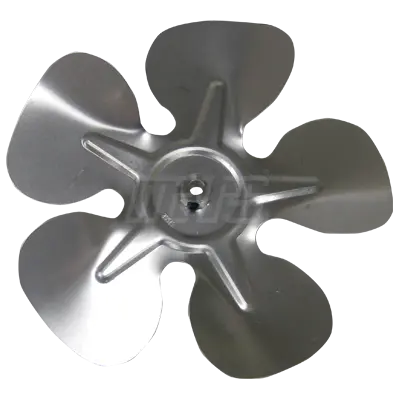

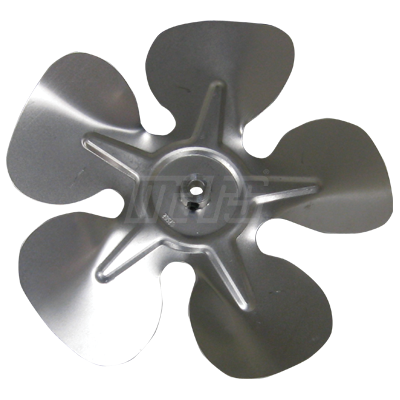

The MARS 7591 is a condenser fan blade suitable for various cooling applications, including evaporators, refrigeration condensing units, ventilators, and ice machines. This component features a five-wing design that enhances airflow efficiency. The blade has a diameter of nine inches and a bore size of five-sixteenths inches. It operates with clockwise rotation.

• Designed for evaporators, refrigeration units, ventilators, and ice machines.
• Features a durable aluminum construction for longevity.
• Optimal for applications requiring efficient airflow.

Product Highlights

This fan blade provides reliable performance in demanding environments and is engineered for efficient air movement in cooling systems.

Product Information

Standard Information

• Brand Name: MARS
• Manufacturer Part Number: 7591

Technical Specifications

• Diameter: 9 inches
• Number of Wings: 5
• Bore: 5/16 inches
• Rotation Type: Clockwise (CW)
• Maximum RPM: 3600
• Material: Aluminum
• Pitch: 26 degrees
• Depth: 1 3/8 inches
• CFM: 725
• Type: Condenser Fan Fixed Hub
