Mars 72003 R410A 4.5-5 Univ Txv

Product Description

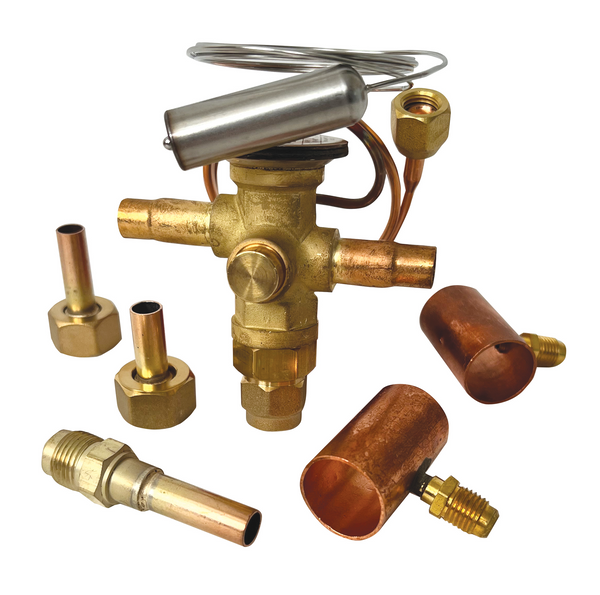

The MARS 72003 R410A 4.5-5 Univ Txv is a universal heat pump/AC TXV kit. It is designed for AC and heat pump applications with a capacity of 4 1/2 to 5 tons. This TXV kit features external equalization and a MAH Anti-Hunt bulb charge. The kit includes Aeroquip, Chatleff, and 3/8 flare evaporator fittings, along with 7/8" and 3/4" X 1/4" equalization fittings.

• Universal Heat Pump/AC TXV Kit
• Capacity of 4 1/2 to 5 Tons
• External Equalization

Product Highlights

Universal TXV kit for AC and heat pump systems using R410A refrigerant. Includes fittings for installation.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 72003
• Country of Origin: Mexico

Technical Specifications

• Inlet (in.): 3/8
• Outlet (in.): 3/8
• Equalization: External
• Capacity (Tons): 4 1/2 to 5
• Refrigerant: R410A
• Inlet connection type: SOLDER
• Application: AC and Heat Pumps
• Outlet connection type: SOLDER
• Balanced Port: Yes
• Bulb Charge: MAH Anti-Hunt
• Included Evaporator Fittings: Aeroquip, Chatleff, 3/8 Flare
• Included Equalization Fittings: 7/8" and 3/4" X 1/4"
• Brand: MARS
• Length: 5.20 in.
• Width: 5.00 in.
• Height: 4.30 in.
