Product Description

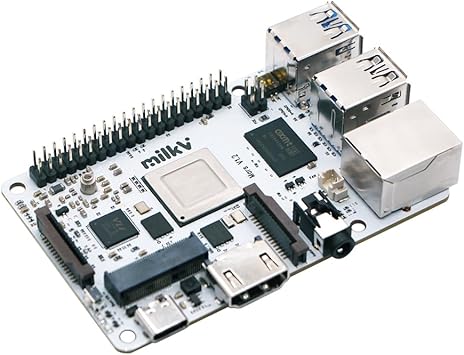

The MARS 7110 Milk-V Mars is a RISC-V Single Board Computer, designed for high-performance applications. It utilizes the StarFive JH7110 processor and comes with four gigabytes of LPDDR4 RAM. This computer supports multiple boot options, enhancing its flexibility for various uses.
- Built on the StarFive JH7110.
- Features up to 8GB LPDDR4 RAM.
- Offers three boot options for expanded storage.
Product Highlights
This SBC is ideal for embedded systems, robotics, and IoT applications.
Product Information
Standard Information
-
Series: Milk-V Mars
-
Operating System: Linux
Technical Specifications
-
SoC: StarFive JH7110 64bit SoC with RV64GC, up to 1.5GHz
-
Memory: up to 8GB LPDDR4
-
Storage: 1x eMMC Slot, 1x Micro SD Slot, 1x SPI Flash for bootloader
-
Video Output: 1x HDMI, 1x MIPI DSI (2-lane), 1x MIPI DSI (4-lane)
-
Max Dual Display Output: 1 HDMI + 1 MIPI DSI
-
Multimedia: Camera with MIPI CSI (2-lane), H.264 & H.265 4K@60fps Decoding, H.265 1080p@30fps Encoding, JPEG encoder/decoder
-
Connectivity: 1x RJ45 Gigabit Ethernet, 3x USB3 + 1x USB2, 1x M.2 E-Key
-
Power: USB-C port 5V DC (minimum 3A+), GPIO Power in, 5V DC via GPIO header (minimum 3A+), PoE with add-on PoE HAT
-
GPIO: 40 Pin GPIO Header
-
Dimensions: 85mm x 56mm
-
Button: 1x Recovery button
-
Other: 2 Pin 5V slot for FAN
