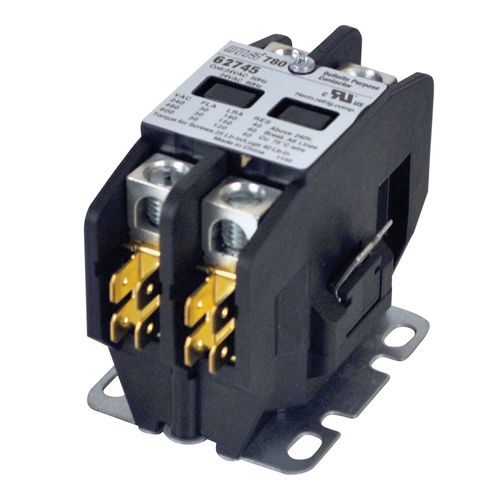

Mars 62745 2 Pole Definite Purpose Contactor with Box Lug Termination 30A 24V (Box Lug) Replacement 61745

Product Description

The Mars 62745 is a 2-pole definite-purpose contactor rated 30 A with a 24 V coil, designed for refrigeration, air conditioning, and electric heating systems. It features an enclosed body for quieter operation, an oversized arch window to simplify wiring, and high-performance copper and brass conductors to maximize current carrying capability. The coil accepts quick-connect terminals or stripped wires, and the unit includes removable coils and a removable cover. A2L compliant.

• Rated 30 A, 2-pole contactor with a 24 V coil for refrigeration, HVAC, and electric heating applications
• Box lug termination with oversized arch window; coil terminals accept quick-connect or stripped wires
• Enclosed thermoplastic housing with copper and brass conductors, removable coils, and removable cover; A2L compliant

Product Highlights

2-pole 30 A, 24 V definite-purpose contactor with box lug termination, removable coil and cover, thermoplastic housing, and A2L compliance.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 62745

Technical Specifications

• Brand: MARS
• MPN: 62745
• Product Type: Definite purpose contactor
• Series: 780
• Poles: 2
• Rated Current: 30 A
• Coil Voltage: 24 V
• Connection Type: Box lug termination; coil accepts quick-connect terminals or stripped wires
• Frequency: 60 Hz
• Replaces: 61745
• A2L Compliant: Yes
• Housing Material: Thermoplastic
• Conductor Material: Copper and brass
• Removable Coil: Yes
• Removable Cover: Yes
• Application: Refrigeration, air conditioning, electric heating, commercial HVAC
