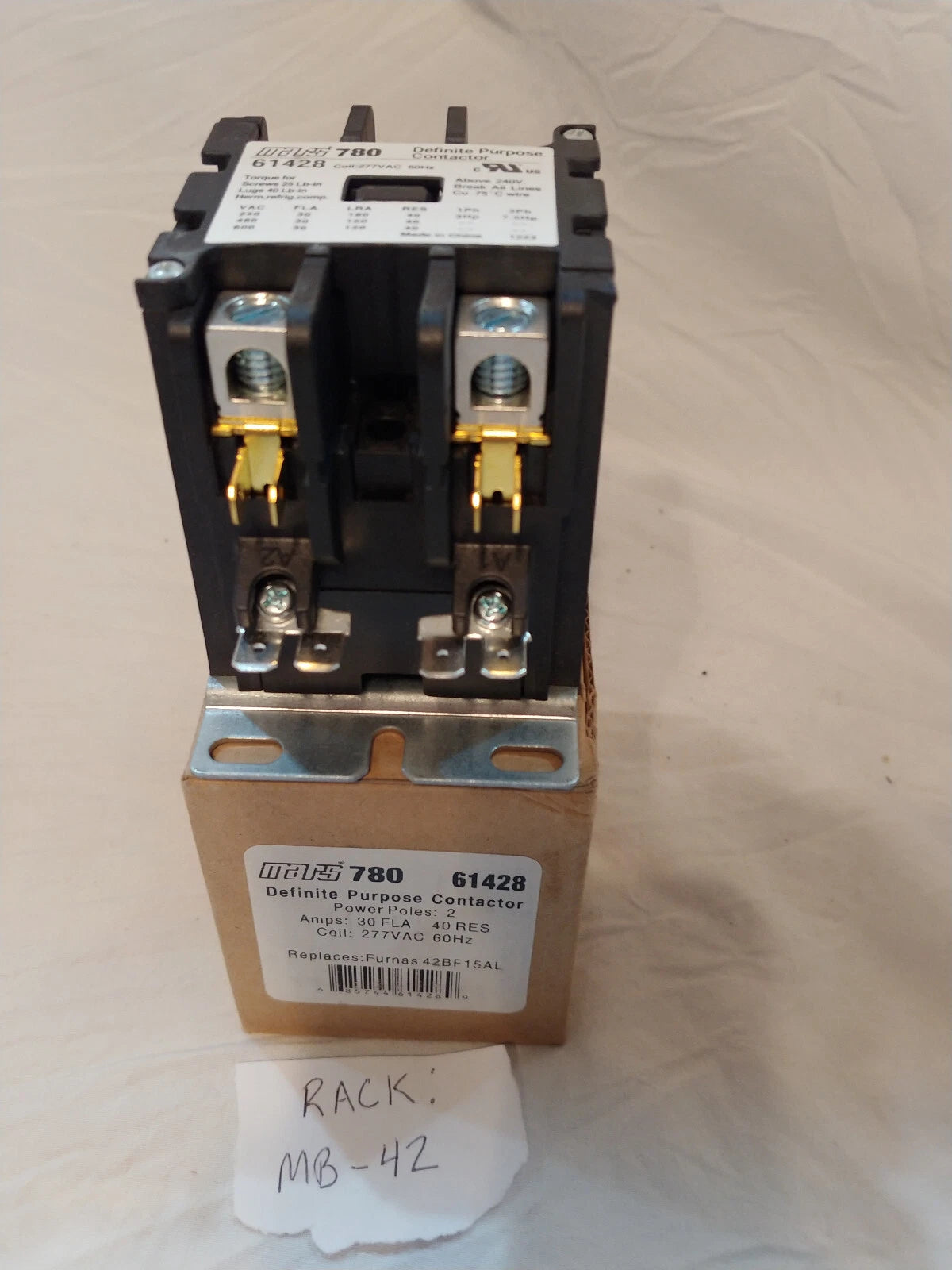

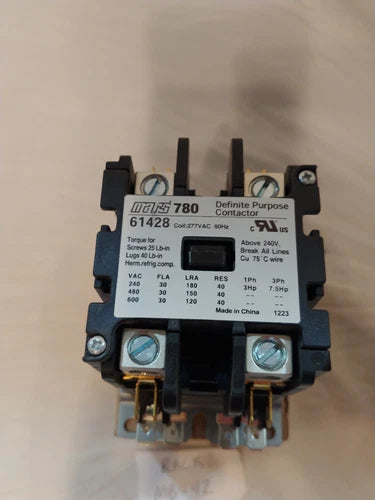

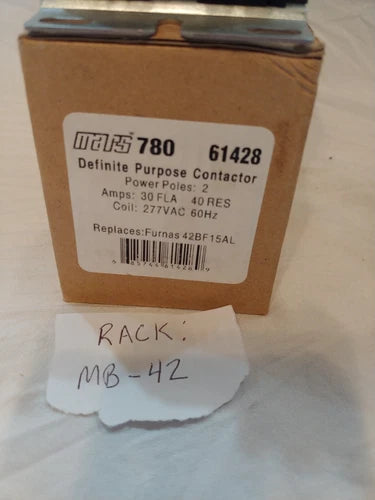

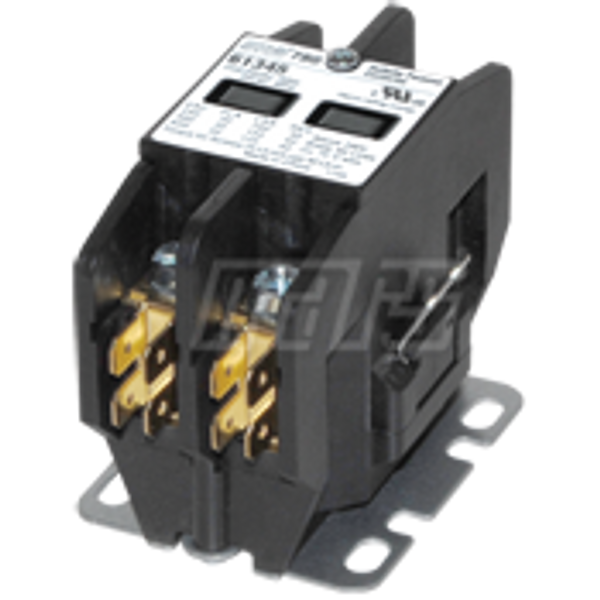

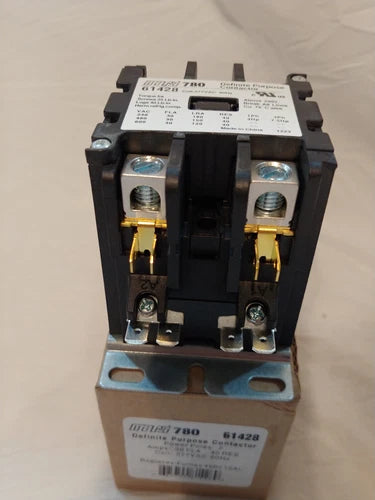

MARS 61428 Definite Purpose Contactor

Product Description

The MARS 61428 is a definite purpose contactor suitable for refrigeration, air conditioning, and electric heating systems. This model is ideal for commercial refrigeration and HVAC applications. It features a robust design that minimizes operational noise and extends its service life.

• Simplified wiring with oversized 'Arch Window'
• High-performance copper and brass conductors
• Removable coils for easy field replacement

Product Highlights

This contactor is designed for environments requiring reliable performance and efficiency, with features that ease installation and maintenance.

Product Information

Standard Information

• Brand: MARS
• Type: Definite Purpose Contactor

Technical Specifications

• SKU: 61428
• Electrical Voltage: 277 Volt
• Amperage: 30 amps
• Coil Voltage: 277 VAC
• Number of Poles: 2 (in 3 Pole Body)
• FLA Inductive Amps: 30
• FLA Resistive Amps: 40
• Width: 2.38 inches
• Height: 2.87 inches
• Depth: 3.69 inches
• Standards: UL
