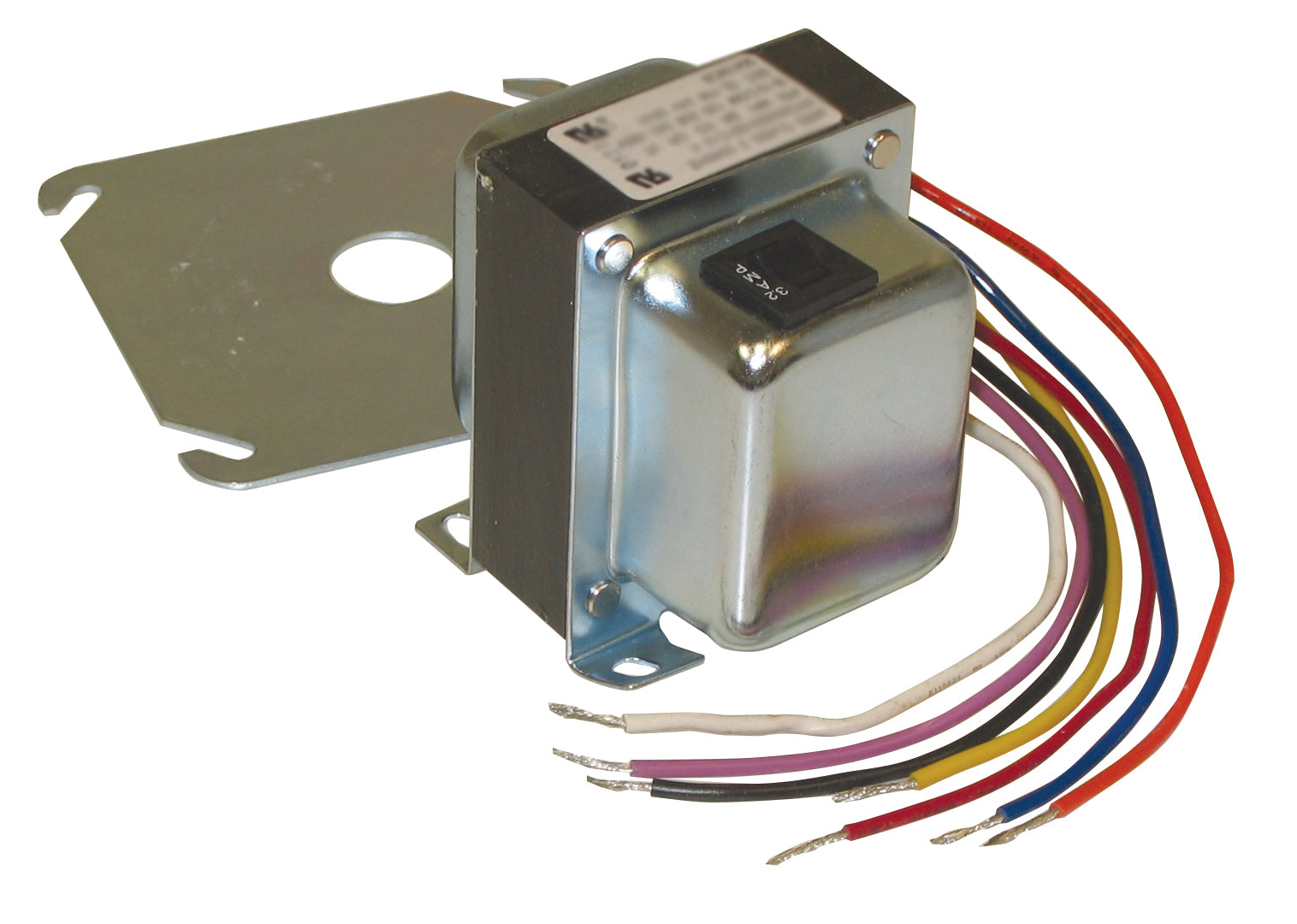

MARS 50372 75VA 120/208/240/480V TO 24V Transformer

Product Description

The MARS 50372 is a 75VA control transformer designed for power supply in HVAC systems. It supports control circuits in air conditioning, heating, and refrigeration. The transformer has NEMA Class II construction, enhancing operational safety. Low heat rise characteristics contribute to its efficiency and durability.

• Provides a power source for control circuits.
• Features NEMA Class II construction for safety.
• Designed for low heat rise to ensure efficient operation.

Product Highlights

This transformer is suited for various applications in the HVAC/R sector.

Product Information

Standard Information

• Type: Control
• Class: Class 2

Technical Specifications

• Input Voltage: 120/208/240/480V
• Primary Connection: Wire Leads
• Voltage Output: 24V
• Mounting: Multi Mount
• Secondary Connection: Wire Leads
• VA Rating: 75
• Hz: 50/60
• Width: 3.15 inches
• Construction: Multi Mount w/Plate
• Circuit Breaker: Yes
• Standards: UL1585
• Height: 3.18 inches
