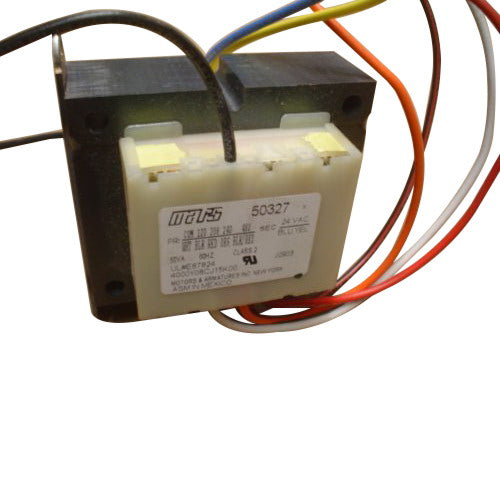

MARS 50327 Mars Control Transformer with Breaker, 50VA, 120/208/240V Primary, 24V Secondary

Product Description

The Mars Control Transformer, MPN 50327, is designed to facilitate control circuits for air conditioning, heating, and refrigeration systems. This transformer offers a KVA rating of fifty VA with a primary voltage range of 120, 208, 240, and 480 volts, and a secondary output of twenty-four volts. The unit is equipped with a breaker and features a foot mount for easy installation.

• Perfect for control circuits in HVAC systems
• Color coded leads allow for quick, simple connections
• Meets UL 5085 standards for safety and reliability

Product Highlights

Efficient performance for control circuitry with various voltage settings.

Product Information

Standard Information

• Item: Control Transformer with Breaker
• Type: End Bell

Technical Specifications

• KVA Rating: 50VA
• Primary Voltage: 120/208/240/480V
• Secondary Voltage: 24V
• Frequency Rating: 60 Hz
• Connection: Color Coded Leads
• Mounting: Foot
• Width: 3.2 inch
• Height: 3.5 inch
• Enclosure Type: NEMA Class II
• Reset Type: Manual
• Series: 503
