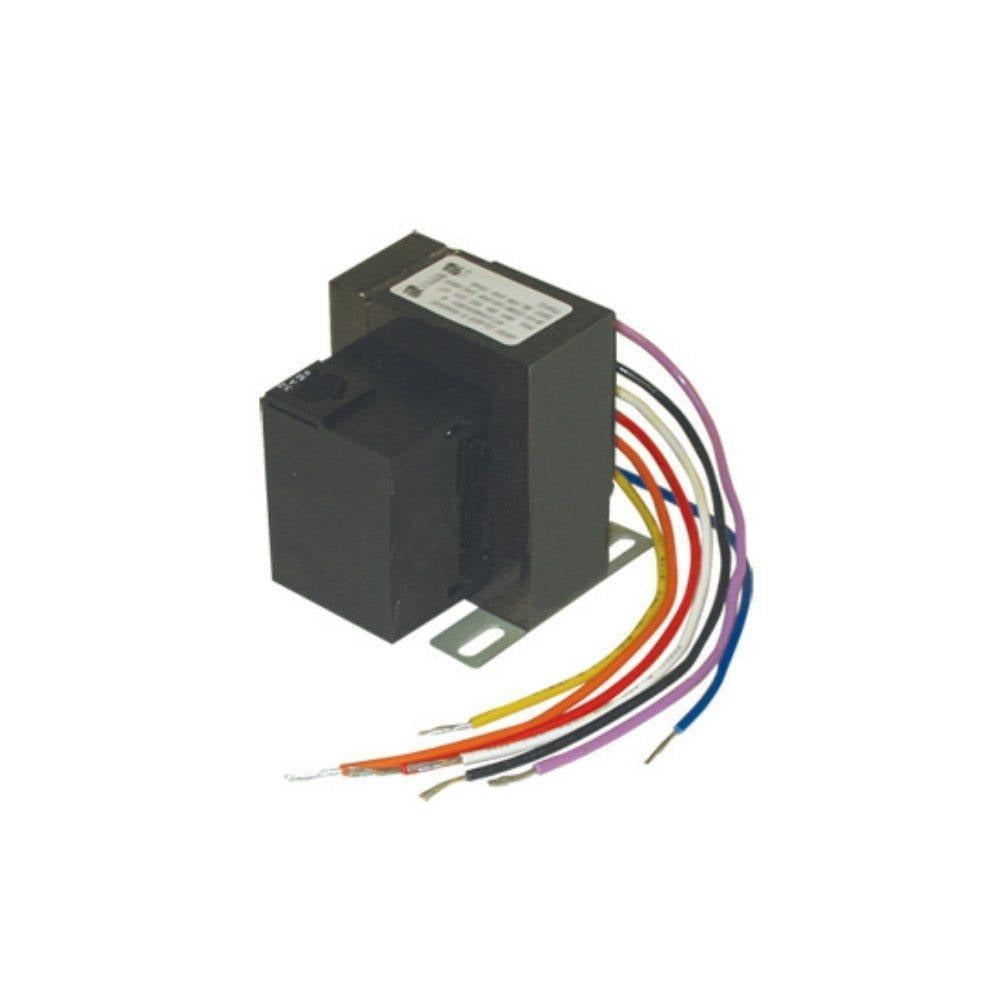

Mars 50312 Foot-Mount End Bell Control Transformer 60 VA (24 V)

Product Description

The Mars 50312 is a single-phase control transformer that converts selectable primary taps (120/208/240/480 V AC) to a 24 V AC secondary at 60 VA. It features foot-mount end-bell, open-frame construction with wire-lead primary and secondary connections and color-coded or quick-connect terminals. The unit includes an internal manual-reset circuit breaker, is recognized as UL Class 2 and listed to UL1585, and operates at 50/60 Hz.

• Primary 120/208/240/480 V AC; secondary 24 V AC; 60 VA; 50/60 Hz
• Foot-mount end bell, open-frame construction; wire leads with color-coded or quick-connect terminals
• Internal manual-reset circuit breaker; UL Class 2 recognized and listed to UL1585

Product Highlights

60 VA, multi-tap primary control transformer with 24 V AC secondary; foot-mount end bell, open-frame construction; internal manual-reset breaker and UL1585/Class 2 listing.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 50312
• Country of Origin: Import
