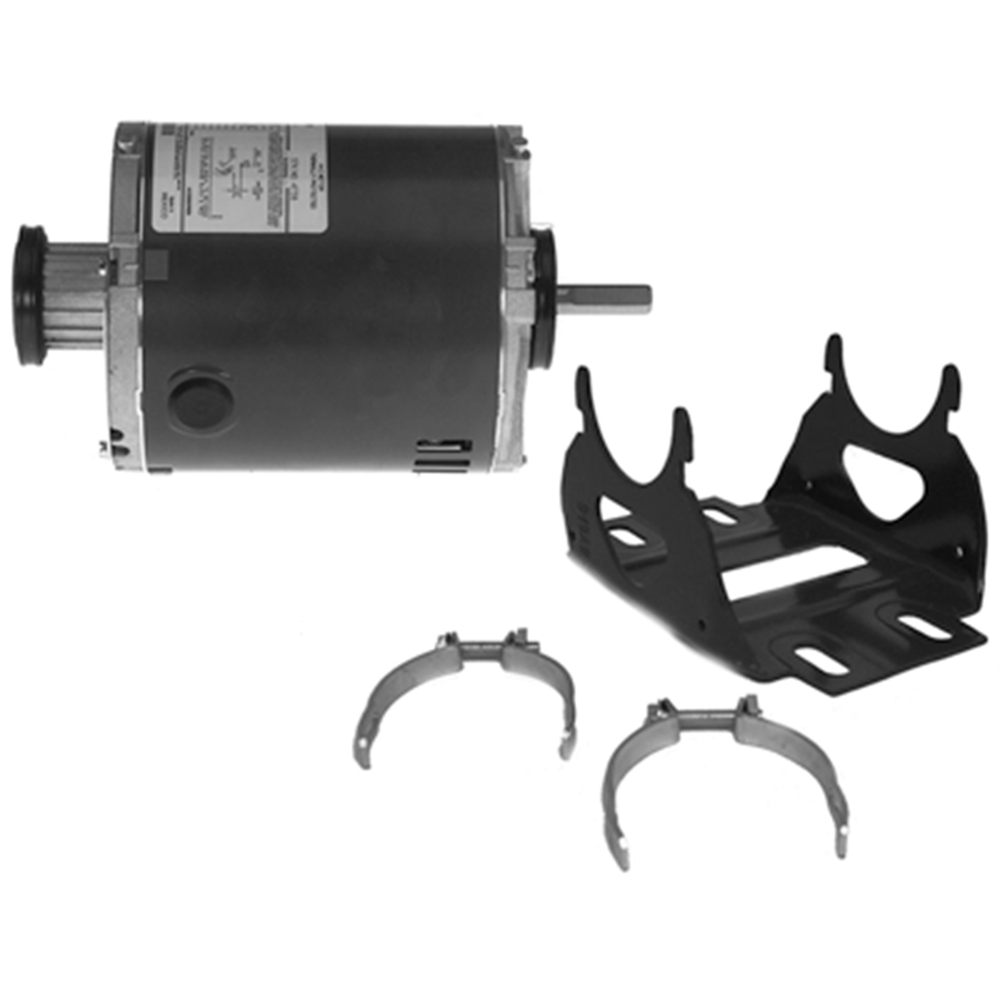

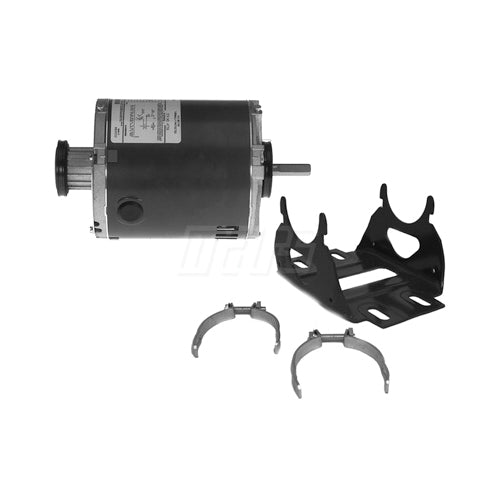

MARS 4731 Blower 1/3 hp 115V 1725 RPM Split Phase 48 Frame

Product Description

The MARS 4731 is a blower designed for HVAC applications. This unit delivers reliable performance with a horsepower rating of one-third and operates at a voltage of one hundred fifteen volts. The motor runs at a speed of one thousand seven hundred twenty-five RPM, providing effective airflow for heating and cooling systems.

• Type: Blower
• Horsepower: 1/3
• Application: HVAC

Product Highlights

This blower offers reversible rotation, automatic thermal protection, and an efficient design suitable for various HVAC installations.

Product Information

Standard Information

• Brand: MARS
• MPN: 4731

Technical Specifications

• Type: Split Phase
• Frame: NEMA 48
• Speed: 1725 RPM
• Voltage Rating: 115 VAC
• Horsepower: 1/3 hp
• Amperage Rating: 5.8 FLA
• Enclosure Type: Drip Proof
• Service Factor: 1.35
• Temperature Rating: 40 deg C
• Number of Phases: 1 ph
• Mounting Style: PDQ
• Dimensions: 5-1/2 in Dia
• Rotation: Reversible
• Mfg Standards/Approvals: CSA Certified, UL Listed
