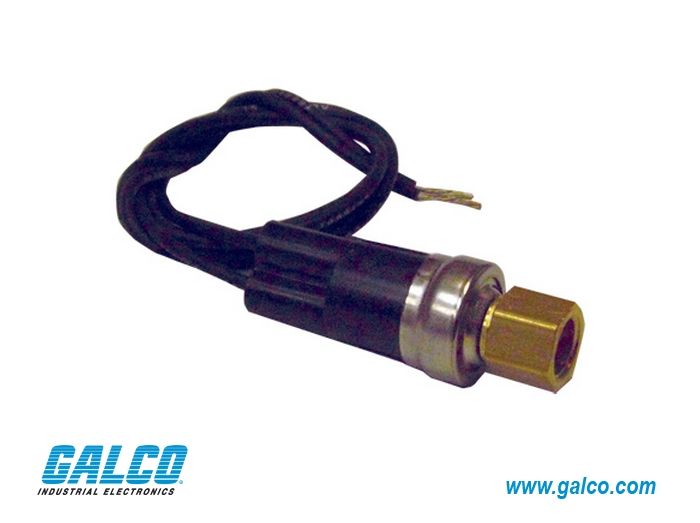

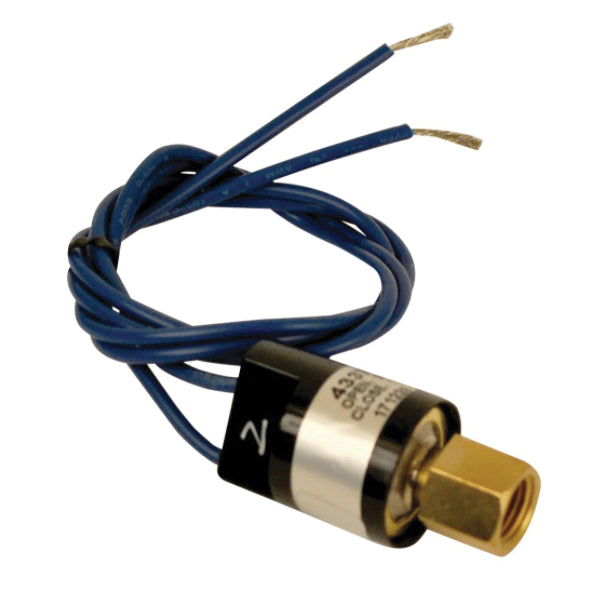

MARS 43375 Cut-Out Switch 24-240 VAC 6 A

Product Description

The MARS 43375 cut-out switch is a pressure-activated device designed for use in various HVAC applications, including R410A systems. This switch operates between twenty-four and two hundred forty volts AC with a maximum current of six amperes. It features a single pole, single throw (SPST) configuration that closes on rise and resets automatically.

• Rated for twenty-four to two hundred forty volts AC at six amperes.
• Includes a quarter-inch female flared connection with eighteen-inch leads.
• Opens at ninety psi and closes at one hundred twenty psi with a seven psi differential.

Product Highlights

The MARS 43375 switch provides reliable pressure control and is suitable for various HVAC systems. Its automatic reset feature enhances functionality in pressure regulation.

Product Information

Standard Information

• Brand: MARS
• MPN: 43375

Technical Specifications

• Amperage Rating: 6 A
• Input Voltage: 24-240 VAC
• Close Pressure: 120 psi
• Open Pressure: 90 psi
• Differential Pressure: 7 psi
• Switch Type: SPST
• Switching Action: Close On Rise
• Rated Life Cycle: 100000 cycles
• Reset Type: Automatic
• Connection Size: 1/4 in
• Connection Type: Female Flared
• Lead Length: 18 in
• Compatible: R-410A
