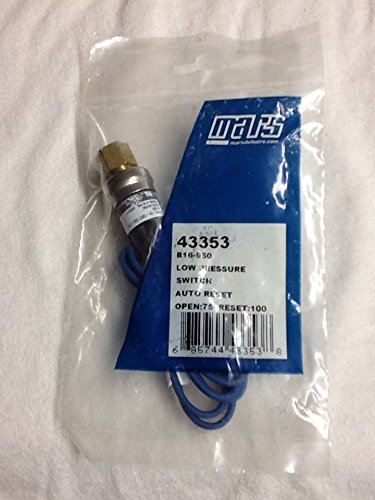

Product Description Mars 43353 Low Pressure Open on Fall 75/100 psi Mars Pressure Switch, Auto Reset, 5.8 amp at 120 VAC and 2.9 amp at 240 VAC Full Load, 34.8 amp at 120 VAC and 15 amp at 240 VAC Locked Rotor, 1/4 Inch Female Flared with Deflator, SPST - NO, 75 psi Open, 100 psi Close, 6 amp, 24 - 240 volt Contact, 100000 Cycle Operating Cycles, Close on Rise Description: Low Pressure Pressure Switch Features: • Contacts rated at 6 amps, 24-240 volts • Tamper proof construction • Light weight for direct mounting • Compact size • Hermetically sealed sensor • Temp. Range: Ambient 20°F to 176°F (-30°C to 80°C) • Temp. Range: Fluid 60°F to 250°F (-50°C to 120°C)

Specifications:
• Range (psi): ±5 • Type: Low Pressure • Amp Rating: 6 • Switch Action: Close on Rise • Voltage: 24 to 250 • Close (psi): 100 • Hz: 50/60 • Open (psi): 75 • Pressure Connection Type: 1/4" Female Flare with Deflator • Reset Type: Auto Reset • Switch Type: SPST • Burst Pressure (PSI): 5000 • Standards: CE/VDE/UL • Lead Length (in.): 18" Blue XLP Wire, 1/2" Stripped Ends
