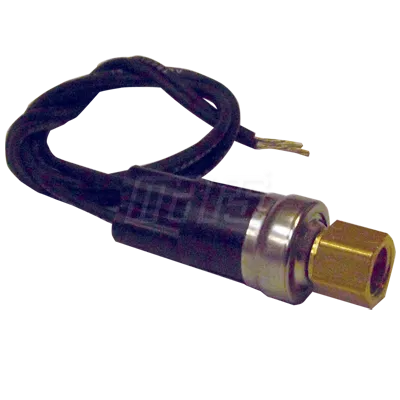

Motors & Armatures 43332 Pressure Switch | Air Conditioning Controls | 300 - 425 PSI

Product Description

The Motors & Armatures 43332 is a reliable pressure switch designed for air conditioning systems. This automatic reset switch functions effectively within a pressure range of three hundred to four hundred twenty-five PSI. It features a one-quarter inch female connection and operates by opening on rise.

• Pressure cut-in at three hundred PSI
• Pressure cut-out at four hundred twenty-five PSI
• Compatible with R22 refrigerant

Product Highlights

This switch is essential for maintaining proper pressure levels in HVAC systems. It provides automatic reset functionality which ensures continuous operation without manual intervention.

Product Information

Standard Information

• Manufacturer: Motors & Armatures
• Product Type: Air Conditioning Controls

Technical Specifications

• Cut-in Pressure: 300 PSI
• Cut-out Pressure: 425 PSI
• Connection Type: 1/4 Inch Female
• Switch Type: SPST
• Operating Cycles: 100000
• Electrical Connection: 18 Inch Wire
• Max Pressure: 425 PSI
• Weight: 0.1 lbs
