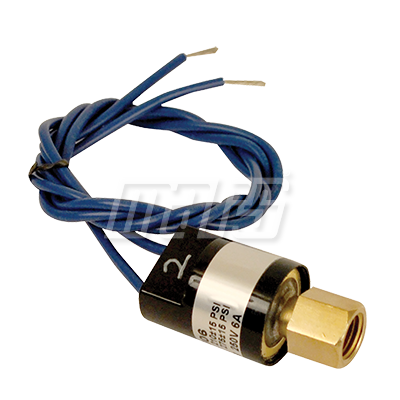

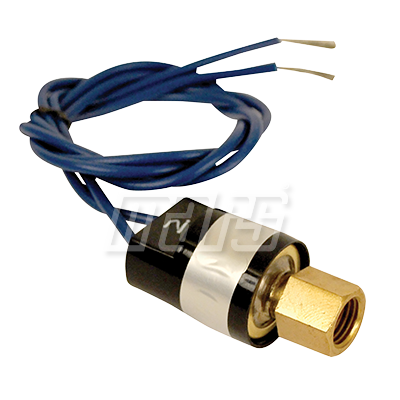

MARS 43328 Fixed Setting High Pressure Cut-Out Control

Product Description

The MARS 43328 is a fixed setting high-pressure cut-out control designed for efficient pressure management. This product falls under the 4 Series Klixon Pressure Switches, known for reliability in electromechanical sensing. It is compatible with R410A applications and suitable for standard pressure settings. The switch contains a hermetically sealed sensor for precise readings and is recognized by UL and CSA standards.

• Contacts rated at six amps, twenty-four to two hundred forty volts
• 1/4 female flare S.A.E. mounting for easy integration
• Constructed to be tamper-proof for added security

Product Highlights

This switch is compact, lightweight, and ideal for direct mounting, providing a seamless installation experience.

Product Information

Standard Information

• Type: High Pressure Cut-Out
• Switch Action: SPST, Open on Rise

Technical Specifications

• Open Pressure: 375 psi
• Close Pressure: 275 psi
• Pressure Connection Type: 1/4 Female Flare with Deflator
• Reset Type: Auto Reset
• Burst Pressure: 5000 psi
• Standards: CE/VDE/UL
• Lead Length: Eighteen inches Black XLP Wire, 1/2 Stripped Ends
• Voltage: 24 to 240 volts
• Amp Rating: 6 amps
• Frequency: 50/60 Hz
• Differential: +/-10 psi
• Operating Cycles: 100,000
