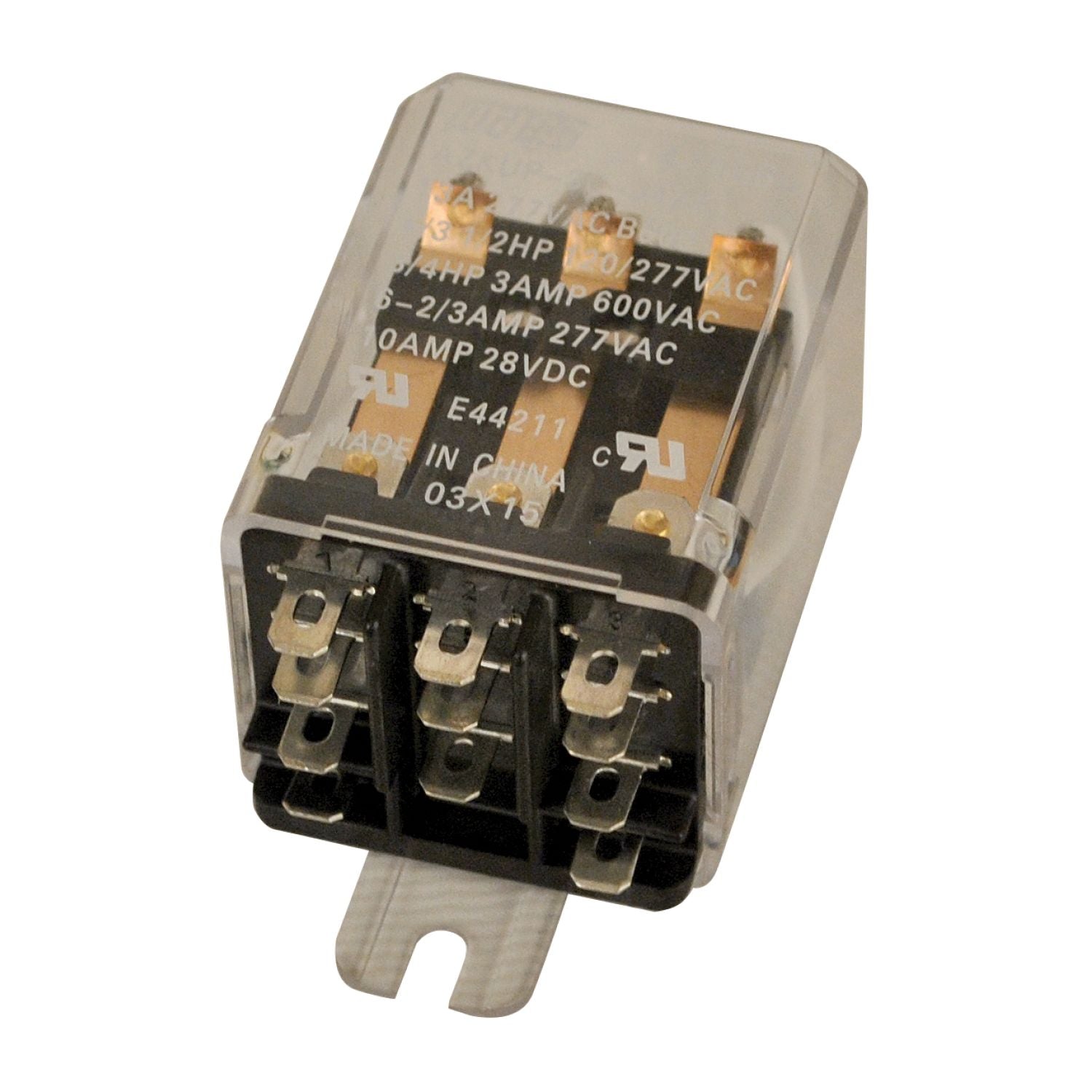

Mars 43057 3PDT 120V Enclosed Relay

Product Description

The MARS 43057 is an AC operated, general purpose power relay. Featuring a 3PDT contact configuration, this relay is rated for a contact voltage of 120 Volt AC and a contact current of 13 Amp. It is suitable for use in heating, air conditioning, vending machines, office machines, and control panels.

• Simple Connection
• Plug-in or Bracket Mount
• See Through Protective Cover

Product Highlights

This enclosed switching relay has a 120 Volt AC 50/60 Hertz coil and plug-in/solder terminal type. UL and CSA approved.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 43057

Technical Specifications

• Type: AC Operated, General Purpose Power
• Contact Configuration: 3PDT
• Contact Voltage Rating: 120 Volt AC
• Contact Current Rating: 13 Amp
• Coil Voltage: 120 Volt AC 50/60 Hertz
• Terminal Type: Plug-In, Solder
• Mounting: Bracket Flange
• Approval: UL, CSA
• Manufacturer Name: Mars
• Manufacturer Part Number: 43057
• UNSPSC Code: 39122325
• Category: HVAC/R & Fans
• Number of Pins: 11-Pin
• Family Series: MARS Relays
• Nominal Coil Voltage: 120 VAC
• Contact Material: Silver Alloy
• Depth: 2 in
• Frequency Rating: 60 Hz
• Height: 1-3/8 in
• Mounting Type: Flange Bracket, Plug-In
• Pickup Voltage: <=102 VAC
• Power Rating: 1/3 hp, 1 hp, 2 VA
• Terminal Blade Size: 3/16
