MARS 40380 FAN BLADES
MARS 40380 FAN BLADES

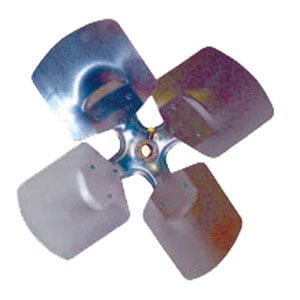

MARS 40380 22 4 Wing CW Fan Blade w/ Fixed Hub

MARS
Brand: MARS
SKU: 40380
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MARS Fan Blade, MPN 40380, is designed as a replacement for various OEM applications. These heavy-duty condenser fan blades are effective and reliable. The hub is located on the intake side for most installations. It is crucial to note the original hub location for selecting the correct fan blade replacement.

  • Hub location: Intake side
  • Number of blades: 4
  • Material: Aluminum

Product Highlights

This fan blade is suitable for HVAC systems where efficiency and functionality are essential.

Product Information

Standard Information

  • MPN: 40380
  • Brand: MARS

Technical Specifications

  • Hub Location: Intake
  • Diameter: 22 inches
  • Pitch: 24 degrees
  • Bore Diameter: 1/2 inches
  • Rotation: CW
  • Material: Aluminum
  • Max RPM: 1140
  • Depth: 3 55/64 inches
  • CFM @ 0.000-In. SP: 4861
  • CFM @ 0.300-In. SP: 4011
  • Min H.P. @ 0.000-in. SP: 0.3496
  • Min H.P. @ 0.300-in. SP: 0.4585
