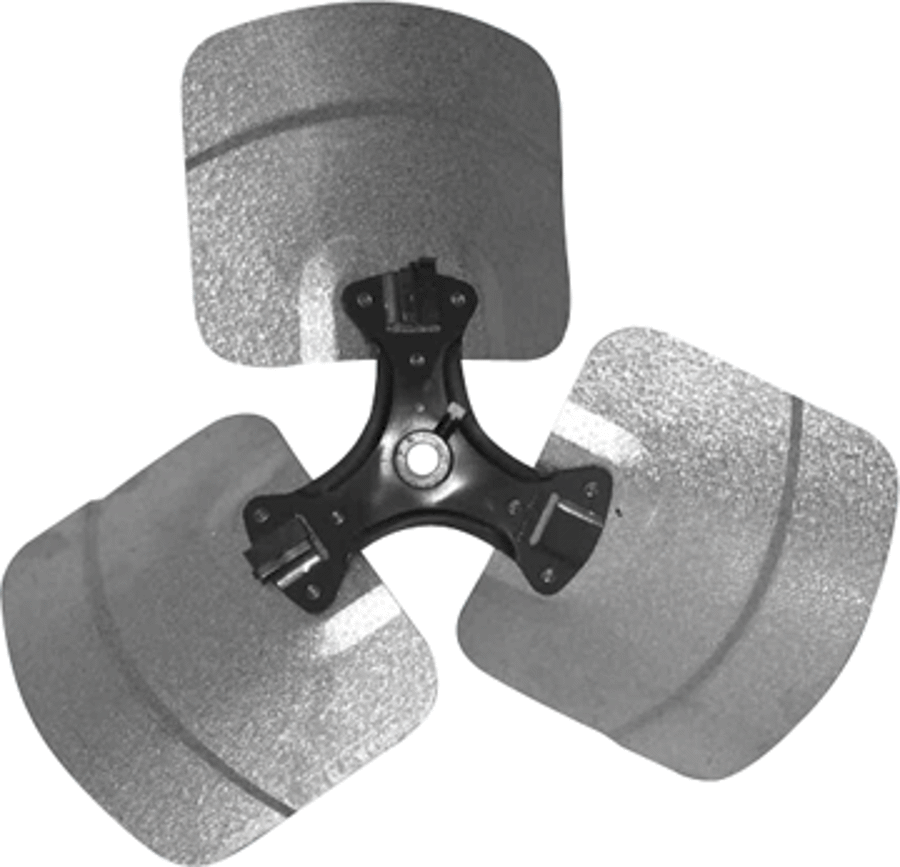

MARS 40054 Fan Blade 22 3-Blade CCW 27 Degree Pitch Heavy Duty Condenser

Product Description

The MARS 40054 is a heavy-duty condenser fan blade with a diameter of twenty-two inches and a counterclockwise rotation. This three-blade design is suitable for various HVAC low-pressure applications. It is compatible with both hex and round adapter hubs. The fan blade's construction includes high-strength aluminum alloy for durability and efficiency.

• Diameter: 22 inches
• Blade Depth: 4-5/16 inches
• Max RPM: 1140

Product Highlights

This fan blade offers reliability in performance and can replace a range of commonly used fan blades. It is designed for easy installation in different condenser systems.

Product Information

Standard Information

• Brand: MARS
• MPN: 40054

Technical Specifications

• Type: Condenser Fan Blade
• Pitch: 27 degrees
• Rotation: CCW
• Material: Aluminum
• Number of Blades: 3
• Diameter: 22 inches
• Max RPM: 1140
• CFM @ 0.000-In. SP: 5301
• CFM @ 0.300-In. SP: 4169
• Minimum H.P. @ 0.000-In. SP: 0.3778
• Minimum H.P. @ 0.300-In. SP: 0.4625
