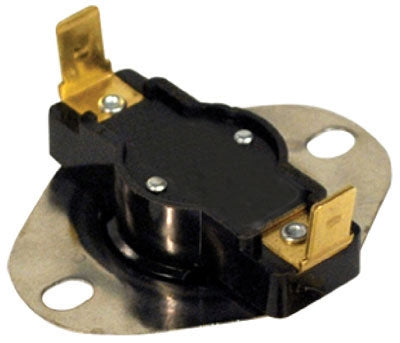

Mars Motors & Armatures 39022 120/240/277 V Limit Switch Thermostat

Product Description

The Mars Motors & Armatures Limit Switch Thermostat with MPN 39022 operates at 120/240/277 volts. This thermostat opens at 180 degrees Fahrenheit and closes at 140 degrees Fahrenheit on temperature rise. It is suitable for HVAC applications where accurate temperature control is required.

• Voltage Rating: 120/240/277 Volt
• Current Rating: 10 Amp at 120 Volt / 5 Amp at 240 Volt
• Open on Temperature Rise Design

Product Highlights

This limit switch thermostat is designed to meet various HVAC needs. Its voltage and temperature specifications make it ideal for a wide range of systems.

Product Information

Standard Information

• Manufacturer: Mars Motors & Armatures
• Product Name: 120/240/277 V Limit Switch Thermostat

Technical Specifications

• Voltage Rating: 120/240/277 Volt
• Current Rating: 10 Amp at 120 Volt / 5 Amp at 240 Volt (Full Load)
• Temperature Rating: 180 Degrees Fahrenheit (Open), 140 Degrees Fahrenheit (Close)
• Power Rating: 125 Volt Amp
• Approval: UL, CSA
• Type: Open on Temperature Rise
• Marketing Text: MARS Series 390 thermostats are suitable for quick replacements and cover the widest temperature ranges available.
