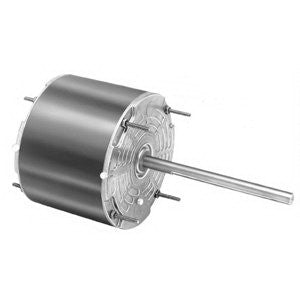

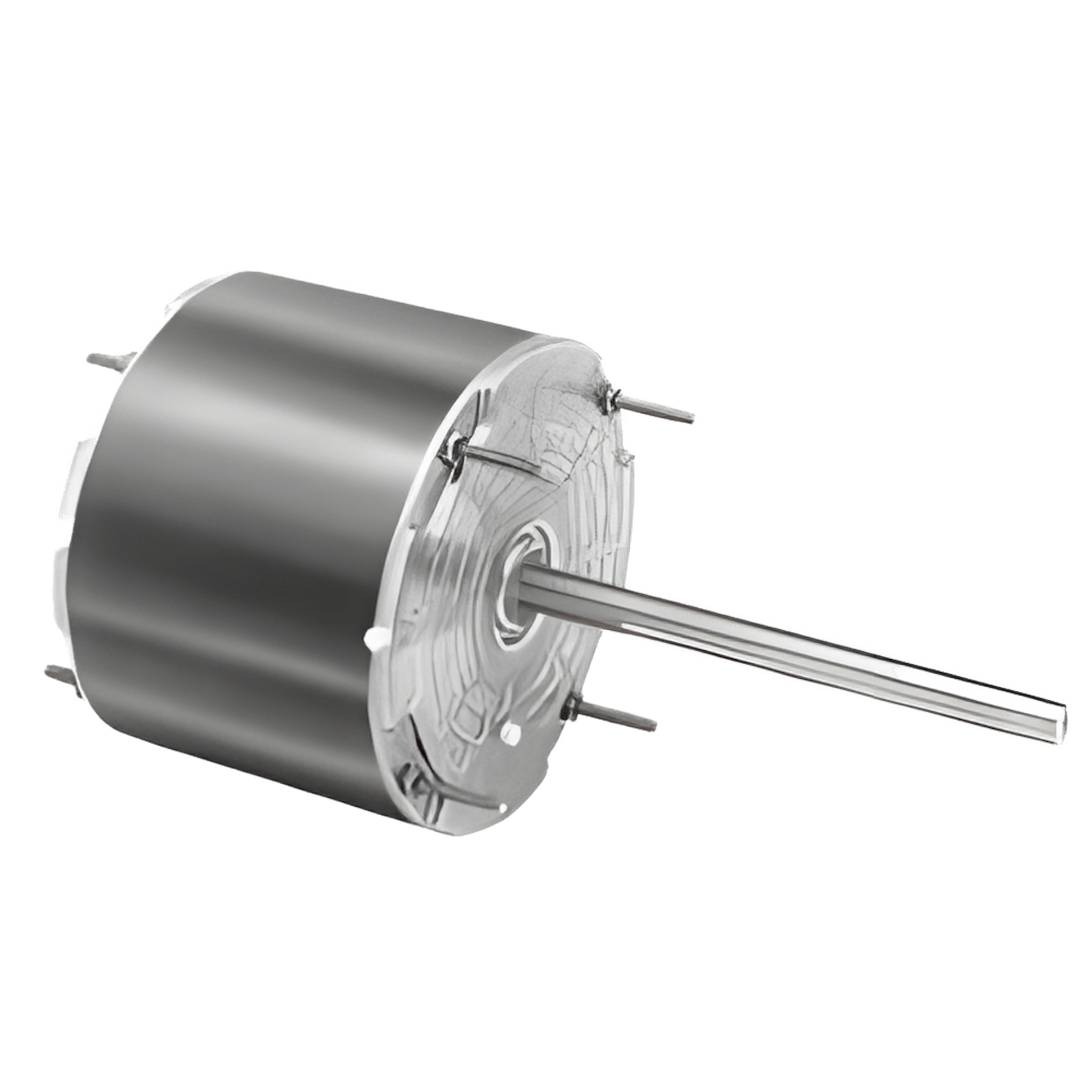

MARS 3735 Mars 3735 208/230V Reversible Rotation Fan Motor, 3/4 HP

Product Description

The MARS Motors and Armatures 3735 is a 208/230V reversible rotation fan motor with a power of three-quarter horsepower. Designed for HVAC applications, this motor operates efficiently at five point one amps. It is ideally suited for air conditioning and heat pumps, ensuring reliable air circulation.

• Reversible operation for flexible installation
• Class B insulation for enhanced durability
• Thru bolt or band mounting options available

Product Highlights

This motor is built to withstand continuous operation and is perfect for various HVAC systems.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Power: 3/4 HP

Technical Specifications

• Voltage Rating: 208 to 230V
• Hertz: 60 Hz
• Phase: 1
• Ampere Rating: 5.1A
• Mounting: Thru Bolt or Band Mounting
• Number of Speeds: 1
• Insulation Class: Class B
