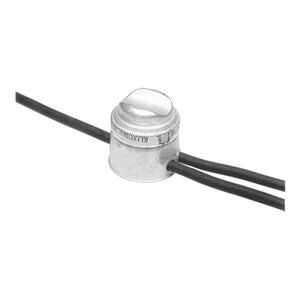

Mars 33415 Klixon 330 Disc Refrigeration Thermostat 20 - 65 deg F

Product Description

The Mars Klixon 33415 is a disc refrigeration thermostat suitable for a control range of twenty to sixty-five degrees Fahrenheit. This SPDT switch thermostat operates at 120/240 volts and is rated for a full load of thirteen amps at 120 volts and ten amps at 240 volts. The unit can be mounted directly on a coil tube or surface, allowing for optimal temperature response.

• Long lead wires included for diverse installation needs
• Compatible with various refrigeration brands such as Hussman and Friedrich
• Encapsulated design for enhanced durability

Product Highlights

This thermostat is designed for reliable performance in refrigeration applications, specifically suitable for refrigeration cases and coils.

Product Information

Standard Information

• Manufacturer: Mars
• Series: 330

Technical Specifications

• Type: Disc
• Control Range: 20 - 65 deg F
• Voltage Rating: 120/240 V
• Full Load Current: 13 A at 120 V, 10 A at 240 V
• Switch Type: SPDT
• Mounting Type: Tube
• Max Resistive Current: 25 A
• Lead Length: 20 inches
• Tube Diameter for Mounting: 5/8 inches
