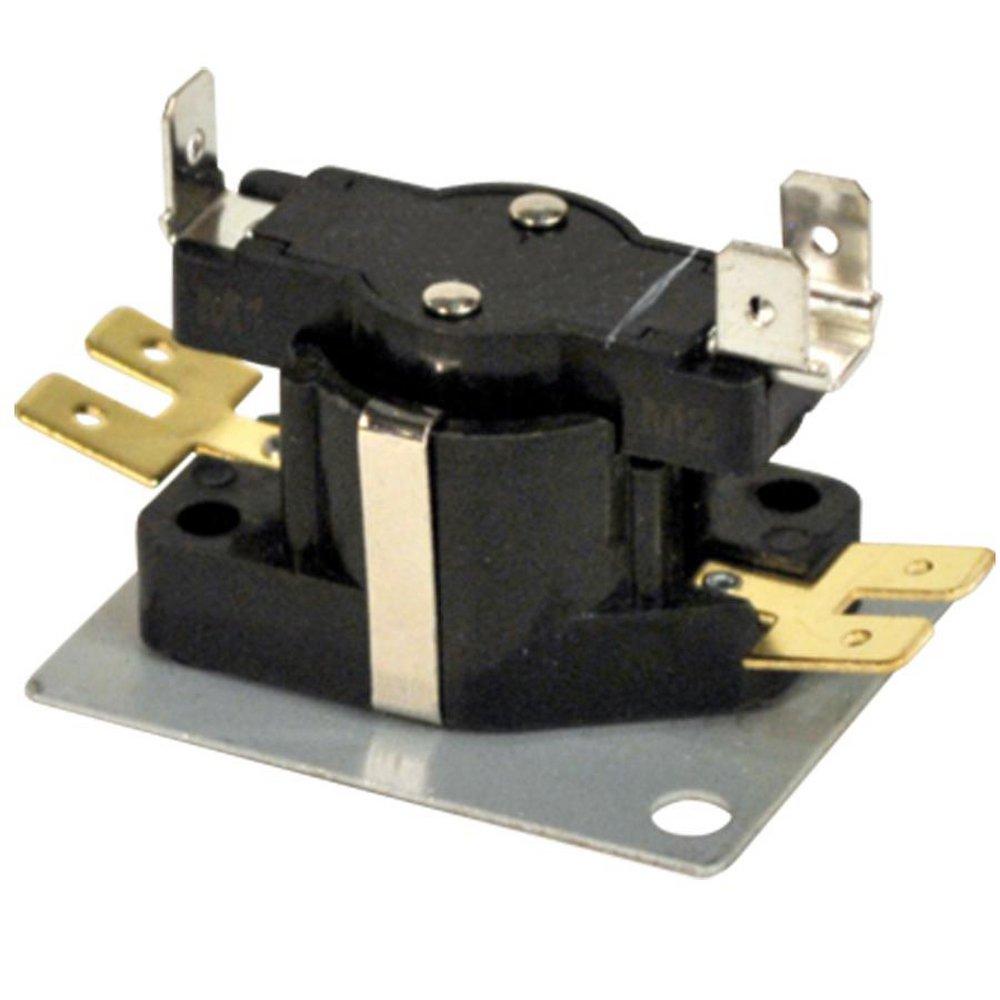

MARS 33242 24V SPST Time Delay Relay MAR33242

Product Description

The MARS 24V SPST Time Delay Relay with MPN 33242 functions to control electrical components through a specified time delay. This relay is suitable for applications in heating, ventilation, and air conditioning systems. Its compact design makes it easy to integrate into different control systems.

• Voltage and ambient compensated design.
• Shock and vibration resistant.
• Automatic reset switch mechanism for reliable operation.

Product Highlights

This relay is ideal for coordinating the operation of electric heat, air conditioning units, gas and oil furnaces, as well as commercial refrigeration systems.

Product Information

Standard Information

• Brand: MARS
• MPN: 33242

Technical Specifications

• Coil Voltage: 24 V
• Contact Configuration: SPST
• Amperage Rating: 25 A
• Voltage Rating: 240 V
• Time Delay: 30 - 75 sec On, 1 - 40 sec Off
• Dimensions: 3.5 inches L x 2.8 inches W x 1.8 inches H
• Shipping Weight: 0.15 lbs
• Standards/Approvals: CSA Certified, UL Listed
