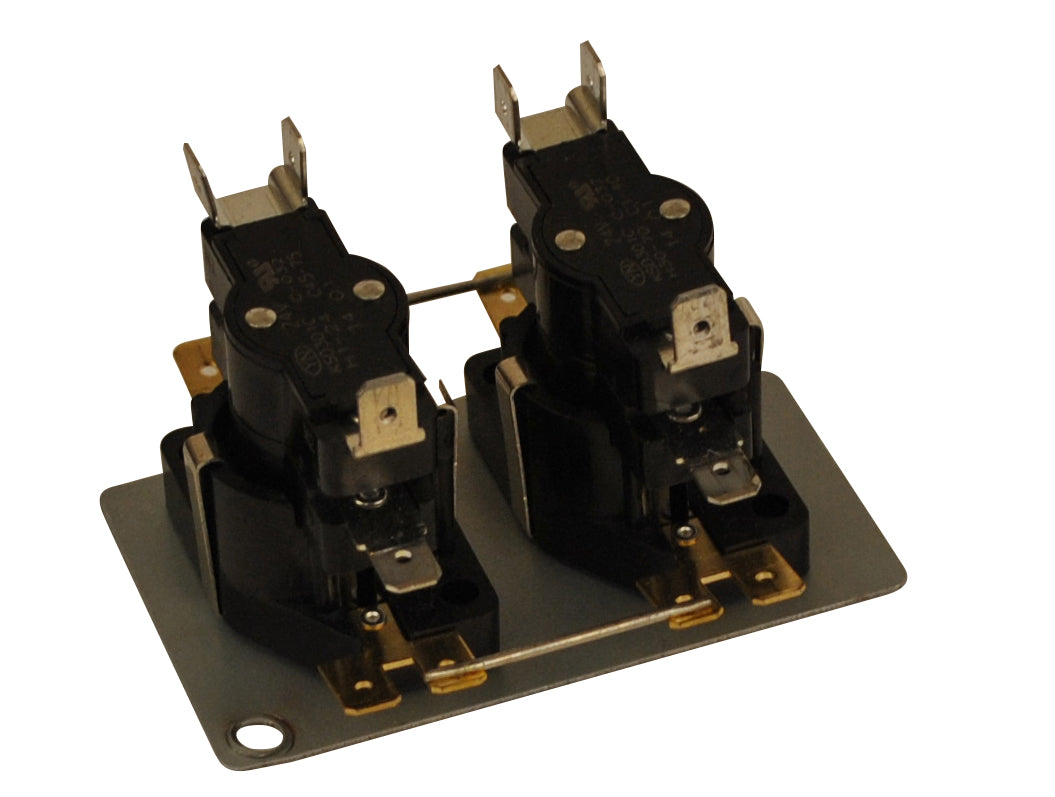

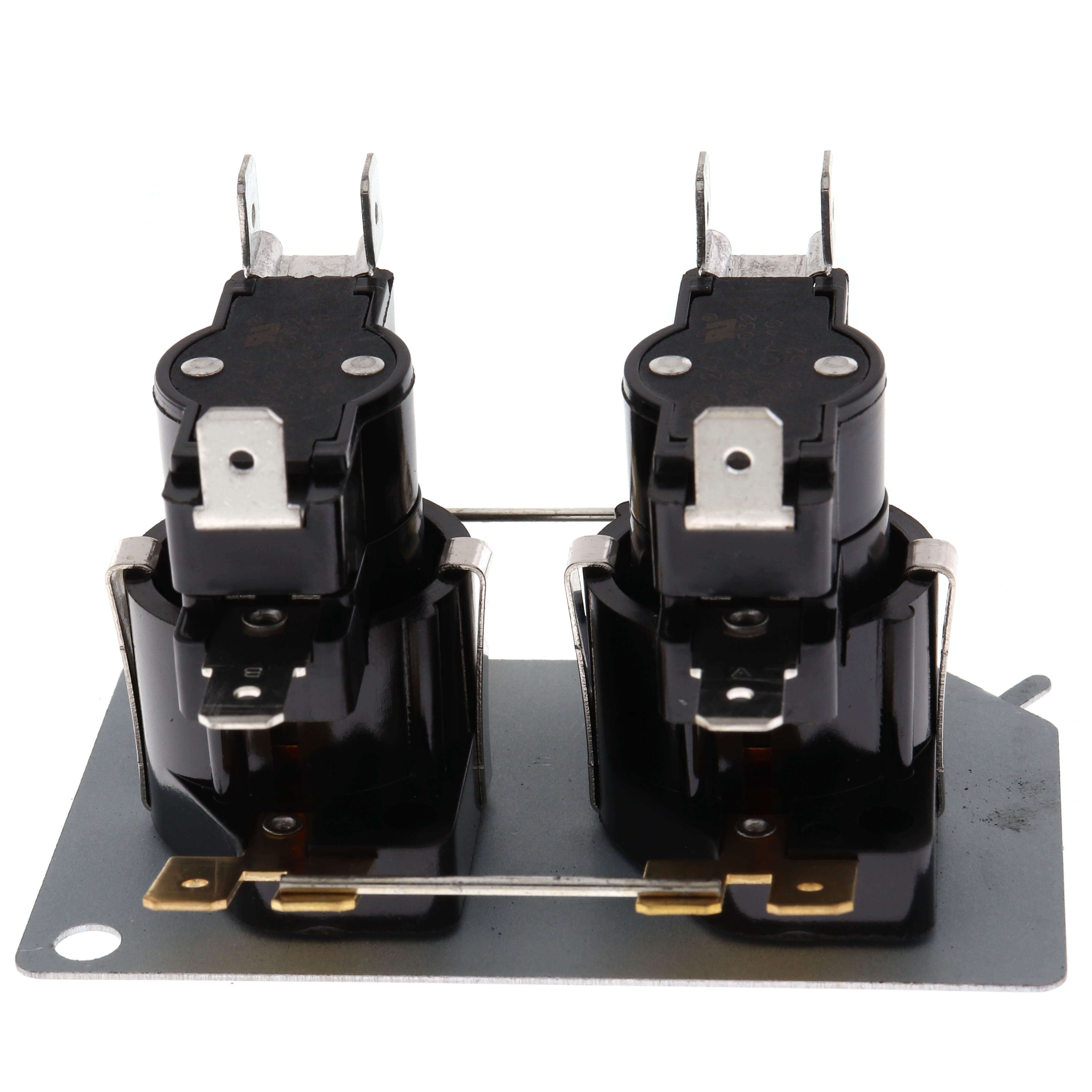

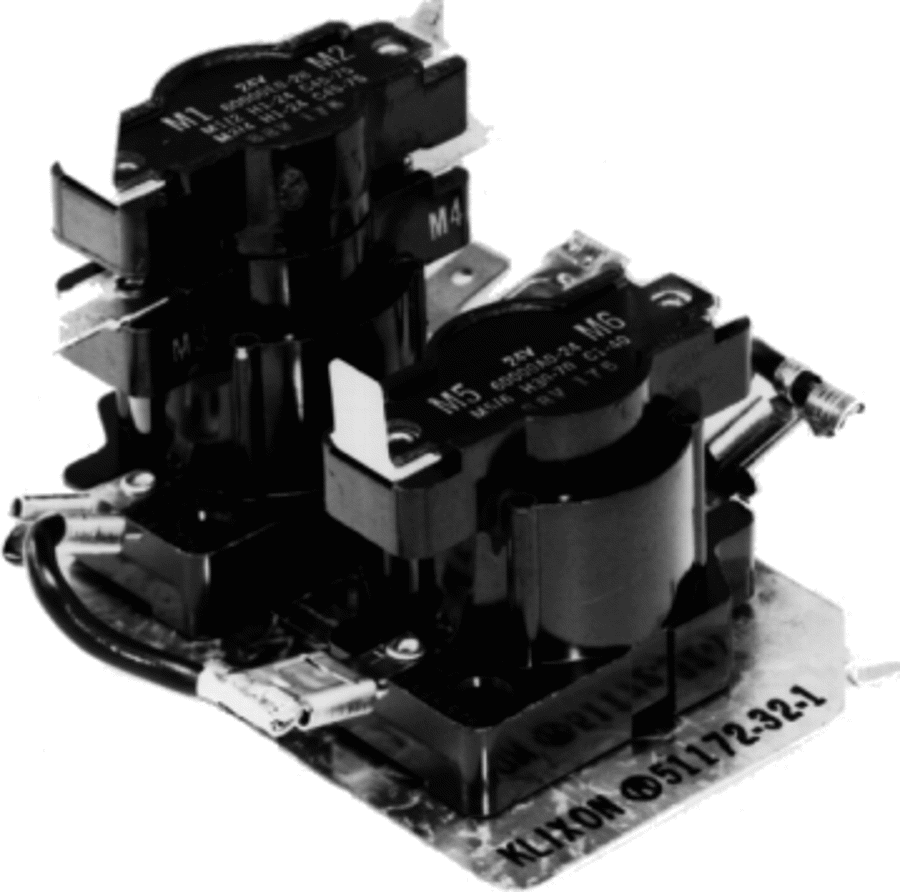

MARS 33233 4 Stage Electric Heat Sequencer 24v

Product Description

The MARS 33233 is a four-stage electric heat sequencer designed to facilitate effective heating control with a two-double-pole single-throw (DPST) switch. It operates on twenty-four volts, making it suitable for various HVAC applications. This sequencer is essential for systems that require precise temperature regulation and coordination of heating stages.

• Four-stage operation for efficient heating control
• Suitable for electric heat systems
• Compatible with various HVAC systems

Product Highlights

The MARS 33233 ensures reliable heating performance. It is suitable for both separate blower and element systems, as well as combination systems. This sequencer distributes heating loads evenly across stages to enhance energy efficiency.

Product Information

Standard Information

• Brand: MARS
• MPN: 33233

Technical Specifications

• Control Voltage: 24 V
• Number of Switches: 4
• Number of Timings: 2
• Main Switch On Time: 1 to 24 seconds
• Main Switch Off Time: 45 to 75 seconds
• Resistance Rating: 30 A at 120 V
• Pilot Duty Rating: 672 VA at 120 V
• Switch Action: (2) DPST
