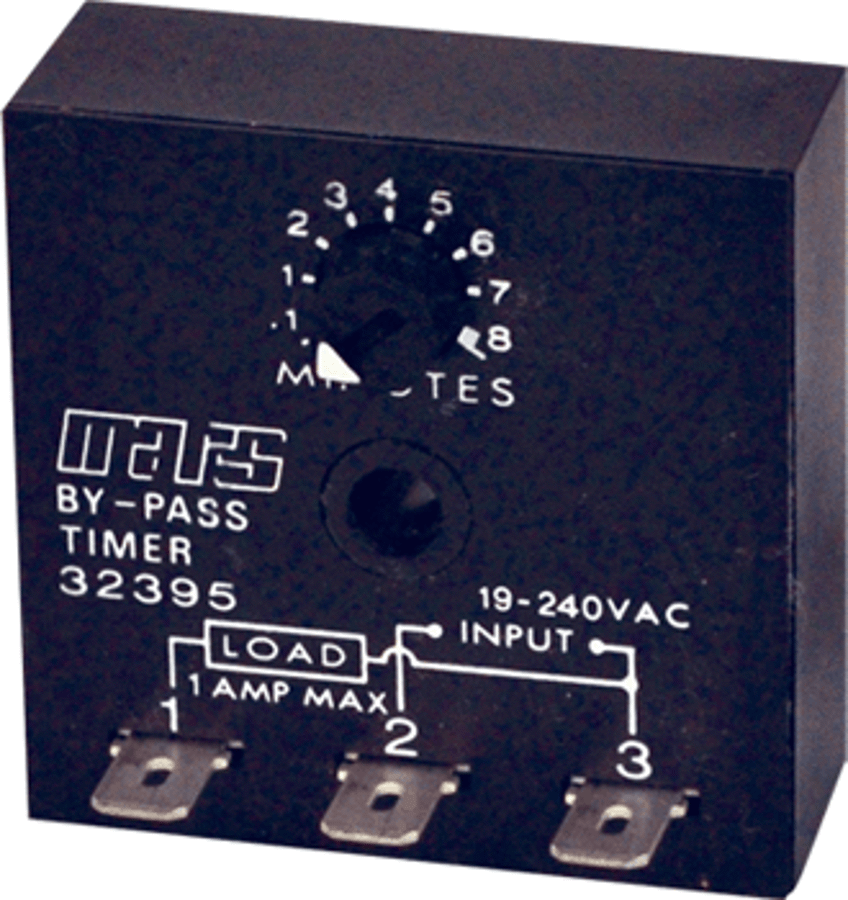

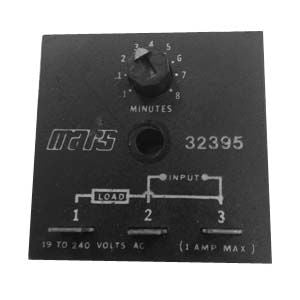

MARS 32395 Timer, Adjustable 19-288VAC Dial 6 Sec-8 Min Bypass Time Delay

Product Description

The MARS 32395 is an adjustable timer designed for HVAC applications. It operates within a voltage range of 19 to 288 VAC and allows for precise control of time delays from six seconds to eight minutes. This product is ideal for use in systems requiring bypass functionality during startup.

• Adjustable time delay between six seconds and eight minutes
• Compatible with voltages from nineteen to two hundred eighty-eight VAC
• Designed for bypassing low pressure switches in HVAC systems

Product Highlights

The MARS 32395 timer enhances the efficiency of HVAC systems by reducing unnecessary lockouts during low ambient conditions.

Product Information

Standard Information

• Product Type: Timer
• Manufacturer: MARS

Technical Specifications

• Voltage Rating: 19 - 288 VAC
• Time Setting: 6 seconds to 8 minutes
• Dimensions: 2 x 2 x 0.75 inches
• Connection Type: 1/4 Inch Quick Connect
• Amperage Rating: 1 A
• Frequency: 50 - 60 Hz
