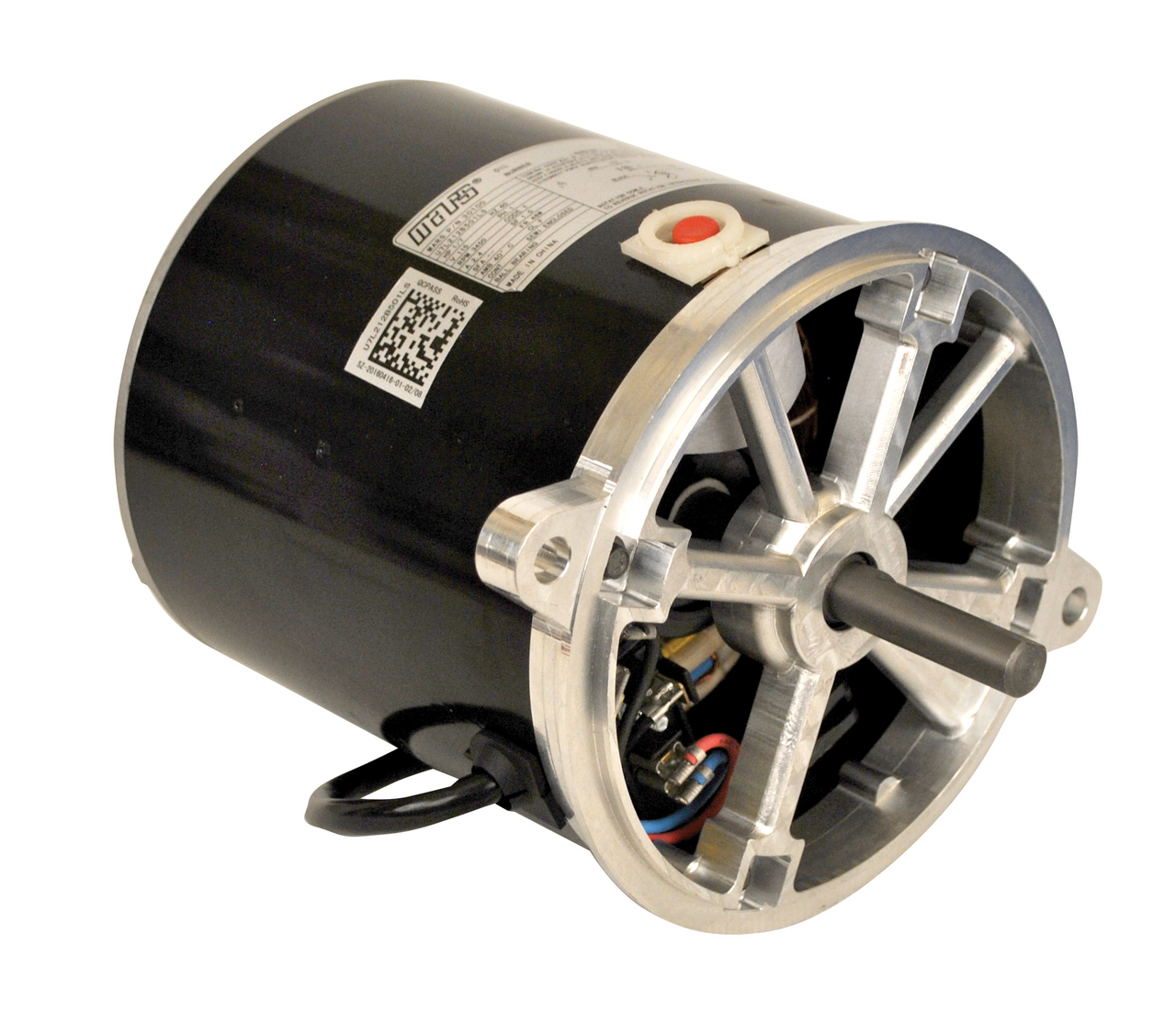

Mars 30100 Oil Burner Motor 1/7 hp 115 VAC 3450 rpm Replaces Century EL2002

Product Description

The MARS 30100 oil burner motor is a replacement motor for residential and commercial oil burners. It is also suitable for hot water pressure/steam cleaners and other applications where 48M or 48N flange mounting is required. This split phase motor operates at 115 VAC, 60 Hz, and 3450 rpm.

• Manual reset thermal overload protection
• Capacitor not included
• Continuous duty
• Two bolt direct mounting for 48M and 48N

Product Highlights

The MARS 30100 is designed for oil burner applications requiring 48M or 48N flange mounting.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 30100
• Country of Origin: China

Technical Specifications

• Brand: Mars
• Amperage Rating: 2.4 A Full Load
• Application Type: Oil Burner Motors
• Bearing Type: Ball
• Enclosure Type: Semi-Enclosed
• Frame: 48M
• Frequency Rating: 60 Hz
• Horsepower: 1/7 hp
• Insulation Class: Class B
• Mounting Type: 2-Bolt Direct
• Number of Speeds: 1
• Phase: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 1-3/4 in L
• Speed: 3450 rpm
• Temperature Rating: 40 deg C
• Type: Split Phase
• Voltage Rating: 115 VAC
