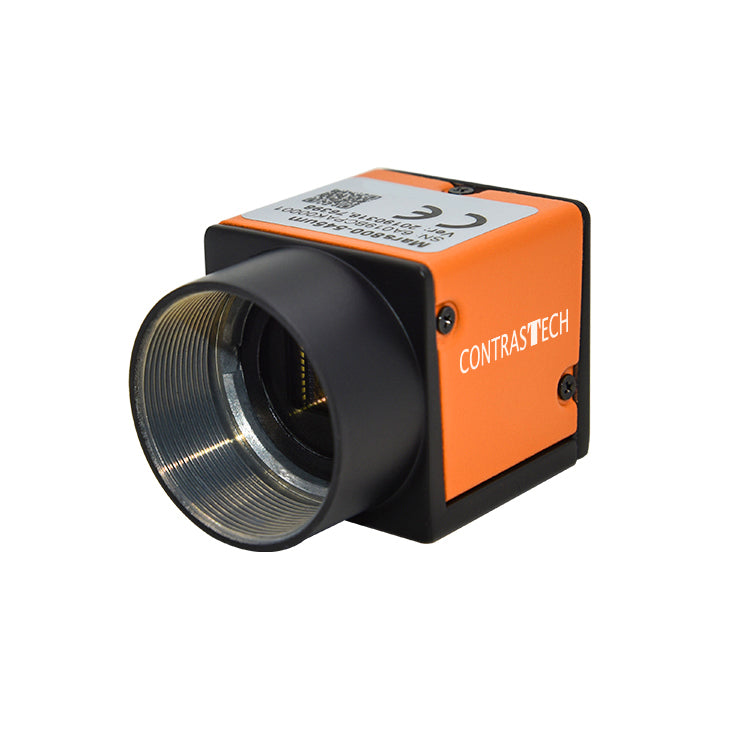

MARS 2840 Omnigraph 2840x2840 IMX546 2/3 inches

Product Description

The MARS 2840 Omnigraph 2840x2840 IMX546 Industrial Camera offers high-resolution imaging capabilities with a compact design. This camera utilizes the Sony IMX546 global shutter CMOS sensor, ensuring sharp image capture suitable for machine vision tasks. The USB 3.0 interface provides quick and reliable data transfer.

• 8MP high-resolution imaging at 46 frames per second
• Compact design measuring twenty-nine millimeters on each side
• Global shutter CMOS sensor for low-distortion images

Product Highlights

The MARS 2840 camera meets various industrial imaging requirements, making it ideal for applications in manufacturing and quality control.

Product Information

Standard Information

• Model Number: Mars8000S-46um
• Sensor Vendor: Sony

Technical Specifications

• Resolution: 2840 x 2840
• Pixel Size: 2.74 x 2.74 micrometers
• Frame Rate: 46 fps
• Sensor Size: 2/3 inches
• Dynamic Range: >70.0 dB
• Interface: USB 3.0
• Operating Temperature: -30~50 °C
• Power Supply: DC 9-24V, supporting USB
