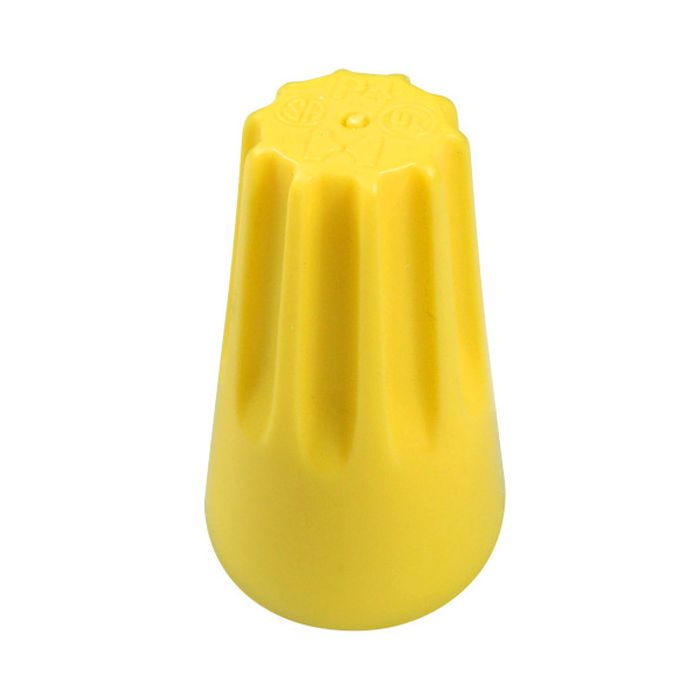

MARS 25933 Yellow Wire Nut 74B Power 600 VAC

Product Description

The MARS 74B Yellow Wire Nut 25933 is a twist-on wire connector designed for secure electrical connections. This connector is versatile and accommodates a range of wire sizes. The durable polypropylene housing holds the wires firmly together. With a steel insert featuring zinc plating, this wire nut enhances electrical conductivity and resists corrosion. It is rated for applications up to six hundred volts alternating current (VAC).

• Color-coded yellow for easy identification
• Compatible with wire gauges ranging from 18 to 10 AWG
• Meets UL and CSA standards

Product Highlights

This wire nut is suitable for various electrical applications. It ensures secure connections for multiple wire combinations, making it ideal for professional electricians and DIY projects.

Product Information

Standard Information

• Manufacturer: MARS
• MPN: 25933

Technical Specifications

• Series: 74B
• Type: Twist on Wire Connector
• Color: Yellow
• Wire Gauge: 18-10
• Max. Voltage: 600 VAC
• Max. Wire Combination: (4) 14 AWG w/(1) 18 AWG
• Min. Wire Combination: (2) 18 AWG
• Max. Wire Size: 12 AWG
• Min. Wire Size: 18 AWG
• Height: 0.87 inches
• Width: 0.55 inches
• Housing: Polypropylene
• Insert: Steel
• Plating: Zinc
• Temperature Rating: 105 C (221 F)
• Standards: UL/CSA
• Weight: 0.45 lbs
