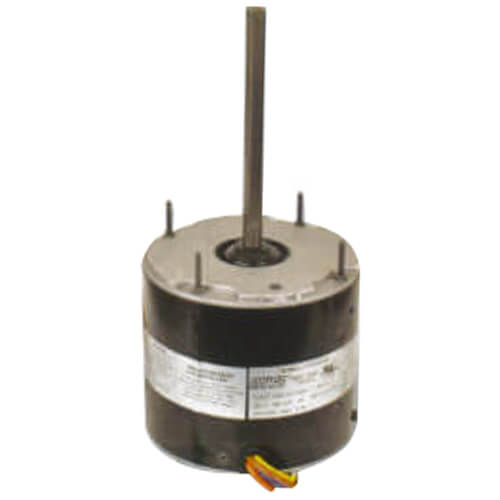

MARS 23728 1/4 HP Condenser Fan Motor 208/230V

Product Description

The MARS 23728 is a 1/4 horsepower condenser fan motor suitable for HVAC applications. This motor operates at 208/230 volts and features reversible rotation. It is designed for easy installation with OEM wiring replication that speeds up setup. The end shields provide weather protection and include weep holes for draining condensate.

• Ball bearing design for smooth operation
• All angle mounting capability
• Condenser fan motor for air conditioning and heat pump applications

Product Highlights

This condenser fan motor is ideal for both new installations and replacements in HVAC systems.

Product Information

Standard Information

• Brand: MARS
• MPN: 23728

Technical Specifications

• Motor Type: PSC
• Enclosure: Totally Enclosed Air Over (TEAO)
• Horse Power: 1/4
• Voltage: 208-230
• Speeds: 1
• Rotation: Reversible
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Thermal Protection: Automatic
• Shaft Length Inches: 6.5
• Shaft Diameter Inches: 1/2
• Weight: 15 lbs
