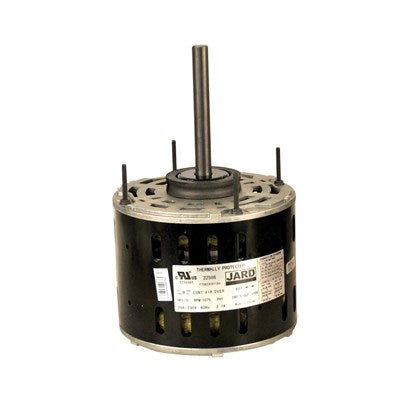

MARS 22589 MOTOR BLO FUR DR DIR 3/4HP 115VAC 60HZ 3

Product Description

The MARS 22589 is a 3/4 horsepower blower motor suitable for various direct drive applications. Designed for efficiency, this motor operates on 115VAC and 60Hz, providing reliable performance for HVAC systems.

• 3-speed operation allows for versatile airflow control.
• Durable sleeve bearing structure ensures longevity.
• Equipped with thermal protection for safe operation.

Product Highlights

This motor is ideal for those needing replacement parts in heating and cooling systems.

Product Information

Standard Information

• Brand: MARS
• MPN: 22589

Technical Specifications

• Motor Type: PSC
• Enclosure: OAO
• HP (Max.): 3/4
• Voltage: 115
• Mounting: Belly Band, Resilient Ring
• Speeds: 3
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 11.2
• Bearing: Ball
• Lead Length: 32 inches
• Thermal Protection: Auto
• Ambient Deg C: 40
• Ins. Class: B
• Shaft Dia.: 1/2 inch
• Shaft Length: 4.5 inches
• Capacitor Rating: 15/370
• Service Factor: 1.0
• Duty: Continuous
