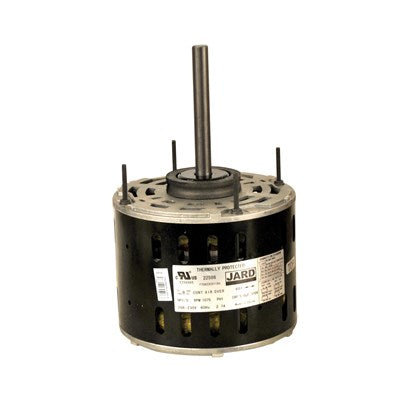

MARS 22584 MOTOR BLO FUR DR DIR 1/4HP 208 TO 230VAC

Product Description

The MARS 22584 is a direct drive furnace blower motor designed for air conditioning applications. This motor has a capacity of one-fourth horsepower and operates on a voltage range of two hundred and eight to two hundred thirty volts. It provides reliable performance with a full load current of one point eight amps and a frequency of sixty hertz.

• Rated at one-fourth horsepower
• Operates at two hundred to two hundred thirty volts
• Offers three-speed settings for flexibility

Product Highlights

This motor is suitable for continuous duty and features an open air over enclosure for effective cooling. The reversible rotation allows for versatile installation.

Product Information

Standard Information

• Motor Type: PSC
• Enclosure: OAO

Technical Specifications

• HP (Max.): 1/4
• Voltage: 208-230
• Mounting: Belly Band, Resilient Ring
• Speeds: 3
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 1.8
• Bearing: Ball
• Lead Length: 32 in.
• Thermal Protection: Auto
• Ambient Deg C: 40
• Ins. Class: B
• Shaft Dia.: 1/2 in.
• Capacitor Included: No
• Shaft Length: 4.5 in.
• Capacitor Rating: 5/370
• Service Factor: 1.0
• Duty: Continuous
