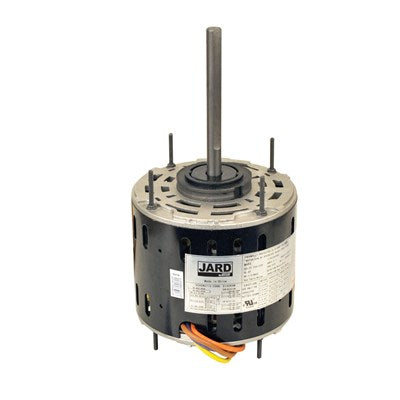

MARS 22466 MOTOR BLO DR DIR FAN & BLO MOTORS 3/4HP

Product Description

The MARS 22466 is a direct drive blower motor suitable for various applications. With a power rating of three-quarters horsepower, it operates on 115 volts AC at eight point five amps. The motor is designed to perform at a frequency of sixty hertz and features a one-phase operation with a speed of one thousand seventy-five RPM.

• Reversible rotation for flexible installation.
• Open air over enclosure for enhanced cooling.
• All-angle mounting capability for versatile applications.

Product Highlights

This blower motor is ideal for heating, ventilation, and air conditioning (HVAC) system installations.

Product Information

Standard Information

• Brand: MARS
• MPN: 22466

Technical Specifications

• Power: 3/4 HP
• Voltage: 115 VAC
• Current: 8.5 A Full Load
• Frequency: 60 Hz
• Phases: 1
• Speed: 1075 RPM
• Frame Size: 48
• Shaft Dimensions: 0.5 in Diameter x 5.8 in Length
• Insulation Class: Class B
• Temperature Rating: 60 deg C
