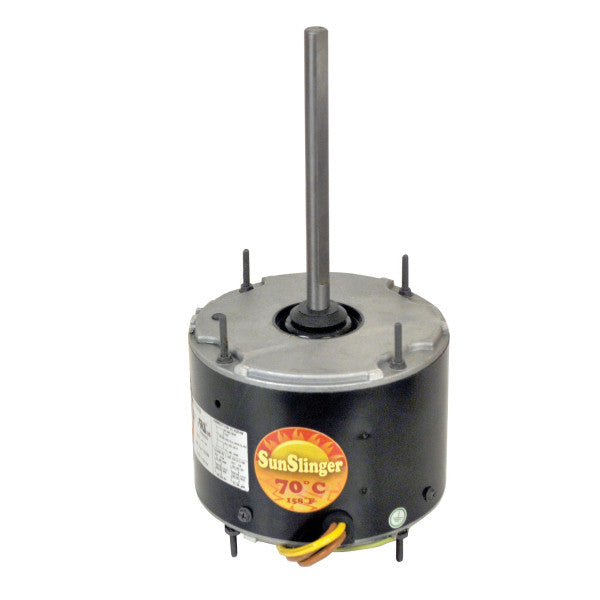

Mars 20881 Condenser Fan Motors 1/3 HP 825 RPM 460V

Product Description

The Mars 20881 Condenser Fan Motor is a robust choice for HVAC systems. This motor operates at one-third horsepower and is designed for outdoor applications. It operates at eight hundred twenty-five RPM, providing reliable performance for heat pumps and condenser fan installations. The totally enclosed not ventilated design protects the motor from dirt and moisture. It features universal all-angle mounting and can rotate in either direction, making it versatile for various installations.

• 1/3 horsepower with reversible rotation.
• Compatible with NEMA 48 frame for easy mounting.
• Constructed for outdoor installations with thermal overload protection.

Product Highlights

Adaptable for various HVAC configurations, the Mars 20881 is perfect for those needing a reliable replacement motor.

Product Information

Standard Information

• Brand: Mars
• MPN: 20881

Technical Specifications

• Frame: NEMA 48
• Phase: 1
• Speed: 825 RPM
• Dimensions: 5-1/2 in Diameter
• Horsepower: 1/3 HP
• Shaft Size: 1/2 in Diameter x 6-1/2 in Length
• Bearing Type: Ball
• Mounting Type: All Angle/Thru-Bolt
• Enclosure Type: Totally Enclosed Not Ventilated
• Voltage Rating: 460 VAC
• Amperage Rating: 1 A Full Load
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Country of Origin: CN
