MARS 20849 M M 20849 3/4HP 460v 1075 TE HIGH TEMP BALL BEARING COND MOTOR 10MFD

Product Description

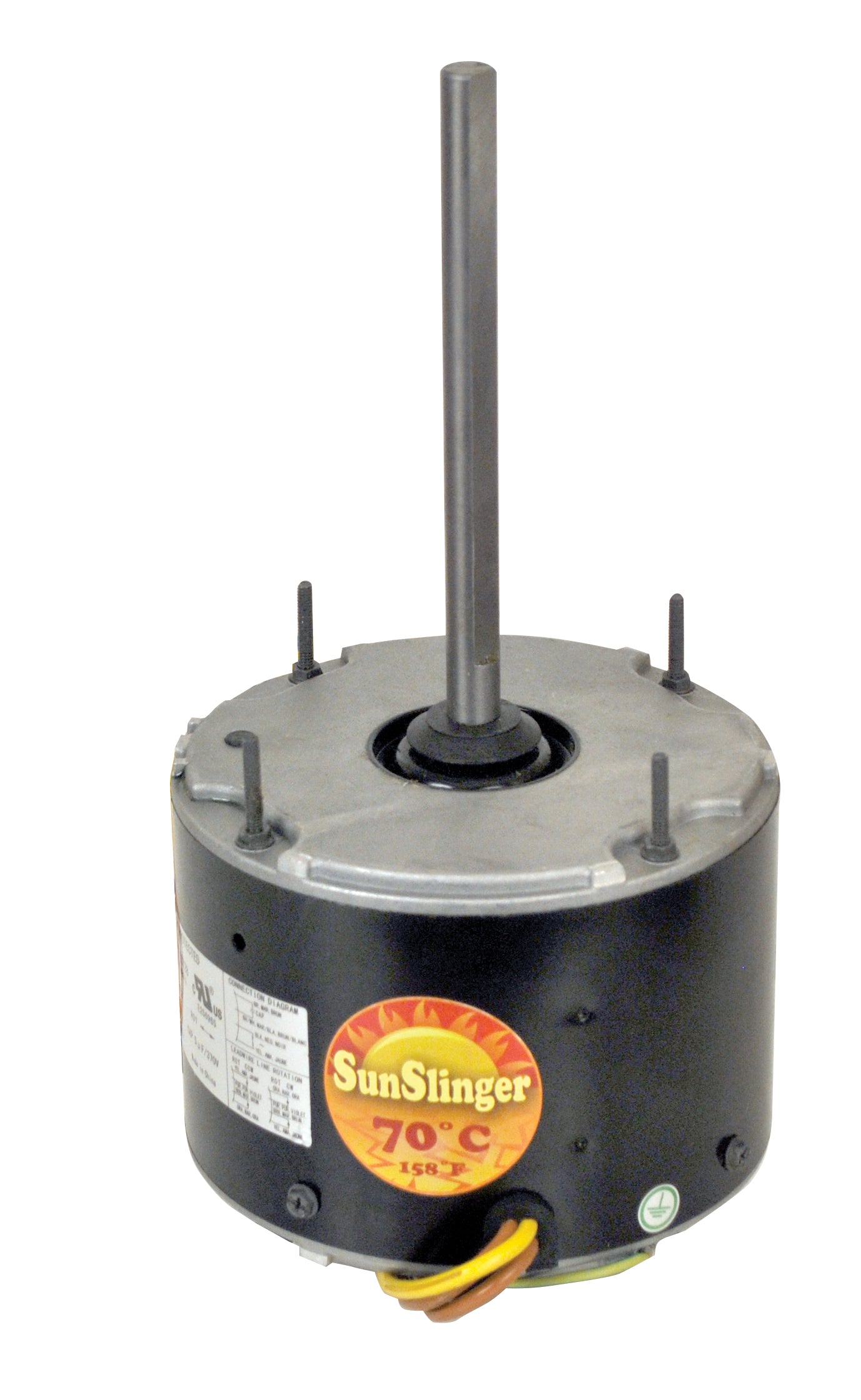

The MARS 20849 is a three-quarter horsepower condenser motor designed to operate efficiently at four hundred sixty volts. This motor features a resilient ball bearing design and is rated for high temperatures, making it suitable for demanding HVAC applications.

• Three-quarter horsepower with a voltage of four hundred sixty
• Ball bearing construction for durability and reliability
• Shaft diameter of half an inch

Product Highlights

This motor provides reliable performance in commercial and residential HVAC systems and is engineered to ensure optimal airflow.

Product Information

Standard Information

• Manufacturer: MARS
• Product UPC: 68574420849

Technical Specifications

• Motor Type: PSC
• NEMA Frame Size: 48
• Number of Phases: Single
• Shaft Diameter: 1/2 inches
• Speed: 1 RPM
• Voltage: 460 volts
• Capacitor Rating: 10/370
• Full Load Amperage (FLA): 2.05
• Horsepower: 3/4
• RPM Range: 1075
• Rotation: CW/CCW
