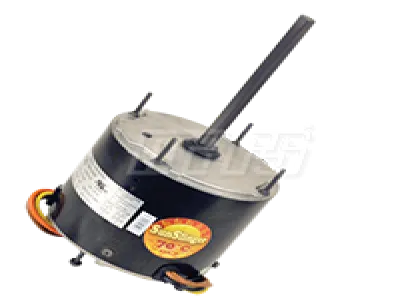

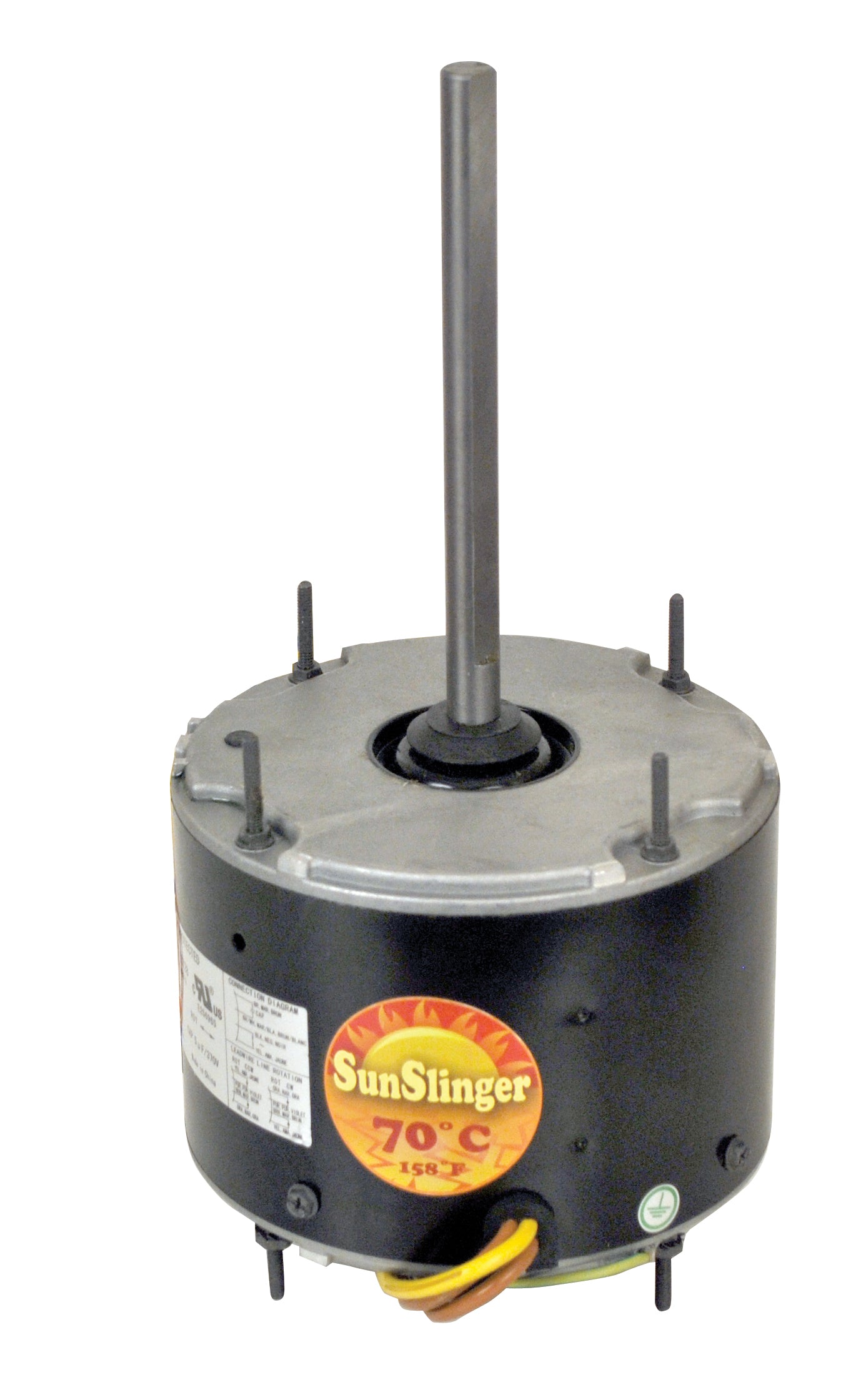

Mars 20837 Condenser Fan Motor 1/3 HP 460V 1075 RPM

Product Description

The Mars 20837 is a condenser fan motor operating at four hundred sixty volts with a power rating of one third horsepower. This motor runs at a speed of one thousand seventy-five RPM and features ball bearings for smoother operation. Ideal for HVAC applications, the Mars 20837 is suitable for various condenser fan requirements.

• NEMA frame size is forty-eight.
• The motor supports single-phase operation.
• Equipped with a capacitor rating of seven point five microfarads at four hundred forty volts.

Product Highlights

This condenser fan motor is designed for reliability and longevity in outdoor air conditioning and heat pump applications.

Product Information

Standard Information

• Manufacturer: Mars
• Voltage: 460V

Technical Specifications

• Motor Type: PSC
• NEMA Frame Size: 48
• Number of Phases: Single
• Shaft Diameter: 1/2 inch
• Capacitor Rating: 7.5/440
• FLA: 0.9
• Horsepower: 1/3
• Speed: 1075 RPM
• Rotation: Reversible
