Product Description

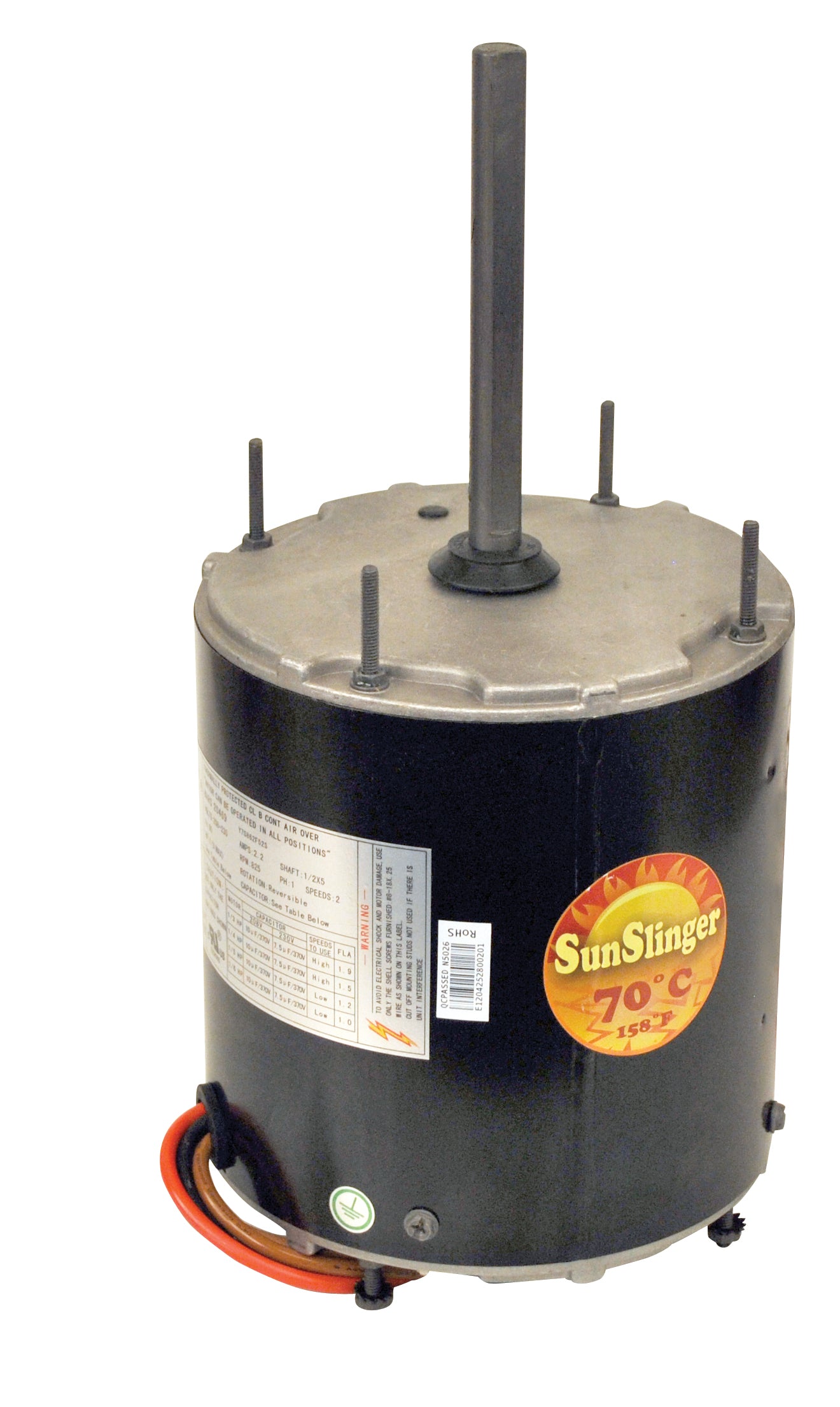

The MARS 20469 is a condenser motor designed for HVAC applications. This unit operates at a horsepower rating of 1/6 to 1/3 and has a voltage range of 208 to 230 volts. It offers two-speed settings to accommodate various cooling requirements.
- Motor Type: PSC
- NEMA Frame Size: 48
- Speed: 825 RPM
Product Highlights
The motor features reversible rotation and is suitable for condenser fan applications.
Product Information
Standard Information
-
Manufacturer: MARS
-
UPC: 68574420469
Technical Specifications
-
Product ID: 80232
-
Capacitor Rating: 7.5/10/370
-
Full Load Amperage (FLA): 1.9
-
Multi-Rated HP: 1/6-1/3
-
RPM Range: 825
-
Shaft Diameter: 1/2 inches
-
Weight: 19.25 lbs
-
Number of Phases: Single
