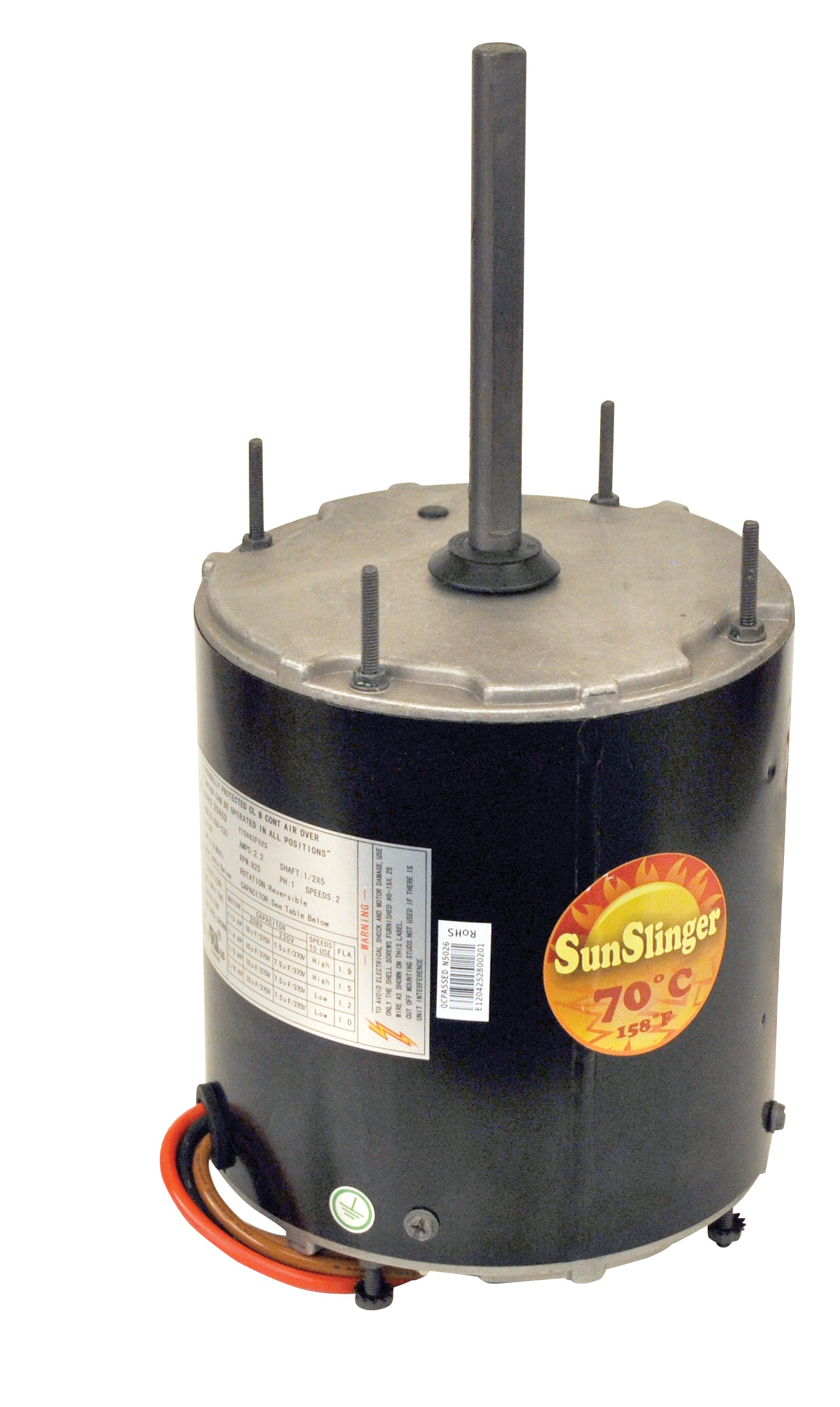

MARS 20468 M M 20468 1/5-1/2HP 230V 1075RPM 2SPD Rescue Cond Motor 1.8AMPS

Product Description

The MARS 20468 is a robust condenser motor designed for HVAC applications. This unit delivers efficient performance with a power rating of one-fifth to one-half horsepower. It operates at a voltage of two hundred eight to two hundred thirty volts and reaches a speed of one thousand seventy-five RPM. With a two-speed feature and a current draw of one point eight amps, the MARS 20468 is suitable for various condenser needs.

• Power Rating: 1/5 to 1/2 HP
• Voltage: 208-230V
• Speed: 1075 RPM

Product Highlights

This motor is ideal for replacing outdated or inefficient units in HVAC systems. The single-phase PSC (Permanent Split Capacitor) design promotes energy savings while maintaining reliable operation. Its compact NEMA frame size of forty-eight and a shaft diameter of half an inch make it compatible with a range of installations.

Product Information

Standard Information

• UPC: 68574420468
• Manufacturer: MARS

Technical Specifications

• Product ID: 80231
• Motor Type: PSC
• NEMA Frame Size: 48
• Number of Phases: Single
• Shaft Diameter: 1/2 inches
• Speed: 2
• Voltage: 208-230
• Capacitor Rating: 10/12.5/370
• FLA: 3.6
• H.P.: 1/2
• Multi-Rated HP: 1/5-1/2
• RPM Range: 1075
• Rotation: REV
