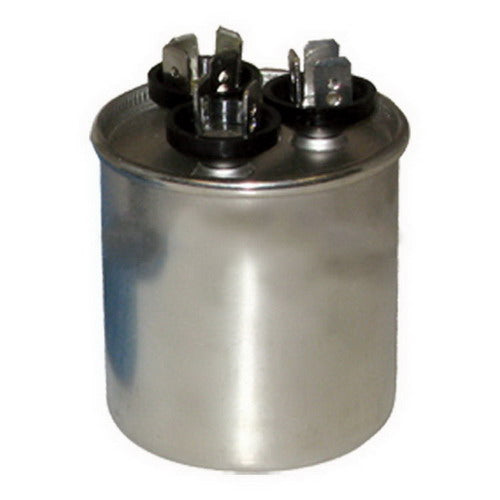

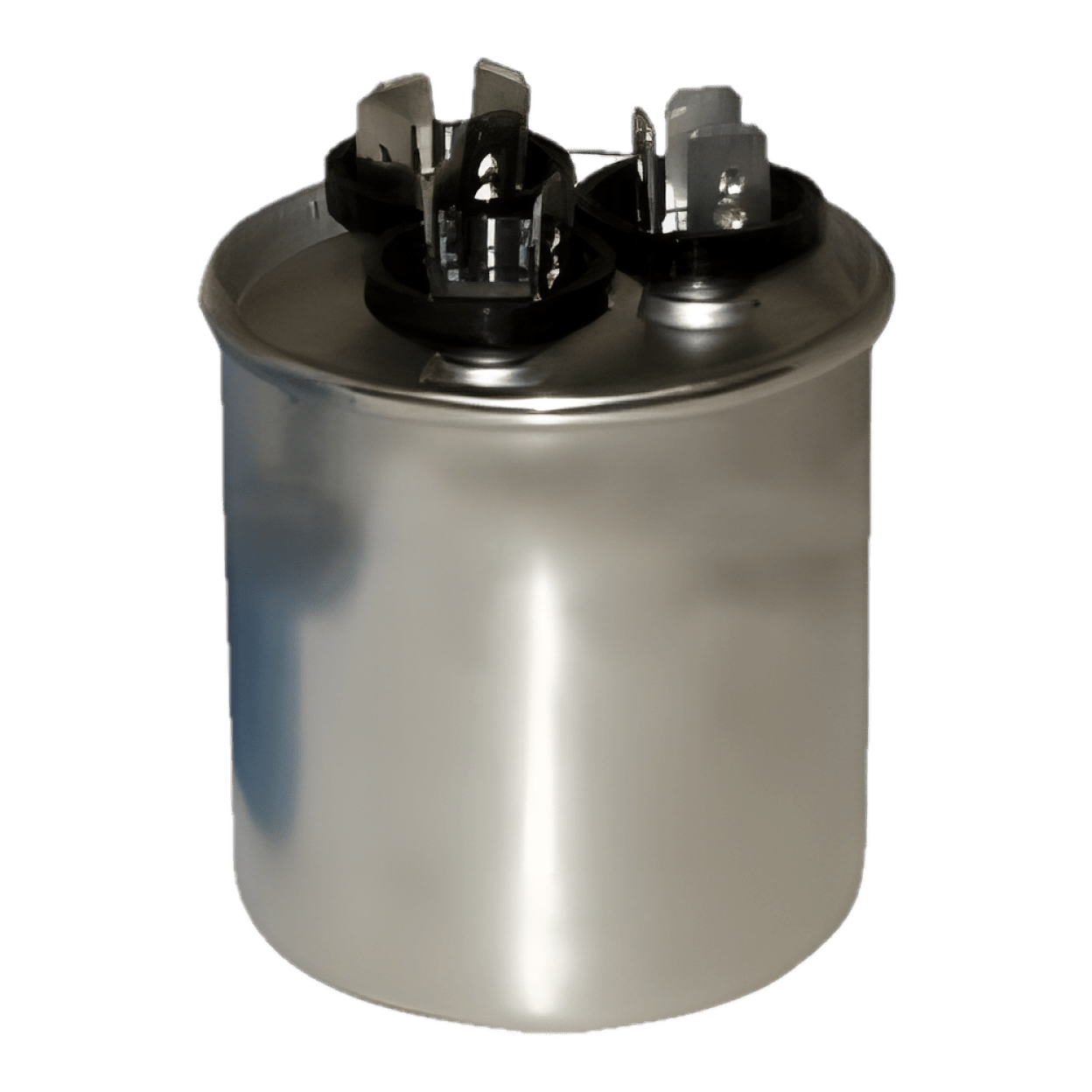

MARS 14278 Mars 25/5 MFD 440/370VAC Dual Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 14278 is a durable dual section round motor run capacitor. This component features a capacitance rating of twenty-five and five microfarads, appropriate for use in HVAC systems. The capacitor operates at a voltage rating of four hundred forty volts and three hundred seventy volts AC, making it suitable for diverse electrical applications.

• Durable aluminum construction for extended life.
• Temperature rating of minus forty to seventy degrees Celsius.
• Complies with UL and CSA standards for safety and reliability.

Product Highlights

This capacitor is designed for efficient motor operation and can enhance system performance.

Product Information

Standard Information

• Manufacturing Part Number: 14278
• Brand: MARS Motors and Armatures

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 25/5 MFD
• Voltage Rating: 440/370VAC
• Frequency Rating: 50/60 Hz
• Terminal Configuration: 4, 3, 2
• Diameter: 2 inches
• Height: 4.38 inches
• Case Height: 3.88 inches
• Material: Aluminum
• Operational Life: 60000 hours
• Temperature Rating: -40 to 70 degrees Celsius
• Standards/Approvals: UL Listed and CSA Certified
