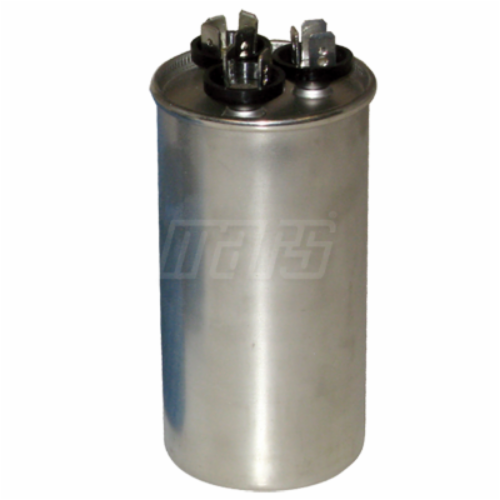

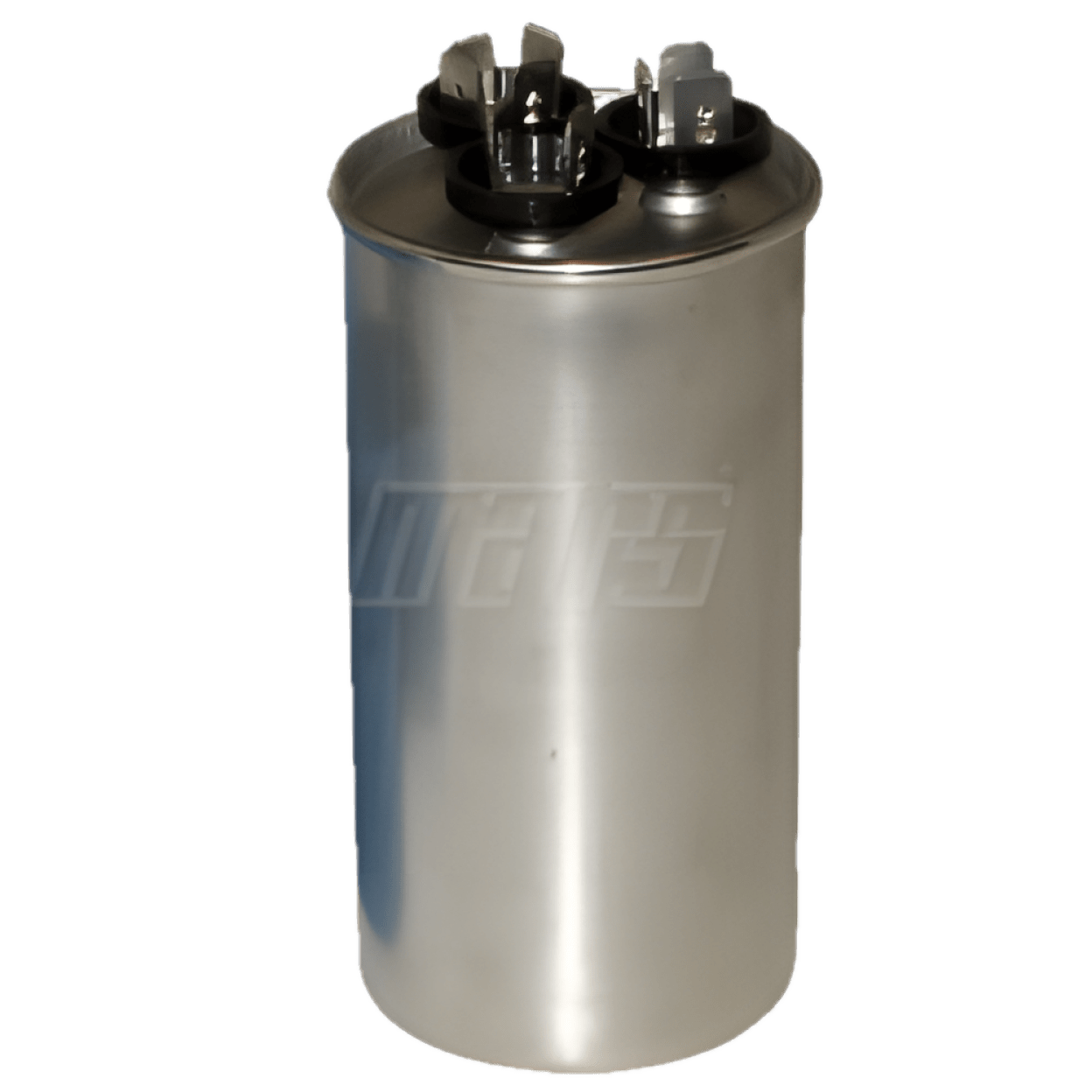

MARS 14255 Mars 70/5 MFD 440/370VAC Dual Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures model 14255 is a dual section round motor run capacitor designed for HVAC applications. It features a capacitance of seventy-five microfarads and operates at a voltage rating of four hundred forty and three hundred seventy VAC. This capacitor helps in maintaining electrical stability and efficiency in motor operation.

• Capacitance: 70/5 MFD
• Voltage Rating: 440/370VAC
• Material: Aluminum

Product Highlights

This capacitor works effectively in HVAC systems to enhance performance and prolong operational life.

Product Information

Standard Information

• Type: Dual Section
• Shape: Round

Technical Specifications

• Voltage Rating: 440/370VAC
• Capacitance: 70/5 MFD
• Temperature Rating: -40 to 70 Deg C
• Operational Life: 60000 hr
• Standards/Approvals: UL Listed and CSA Certified
• Dimensions: 2.5 inch diameter x 5.25 inch height
• Frequency Rating: 50/60 Hz
• Material: Aluminum
