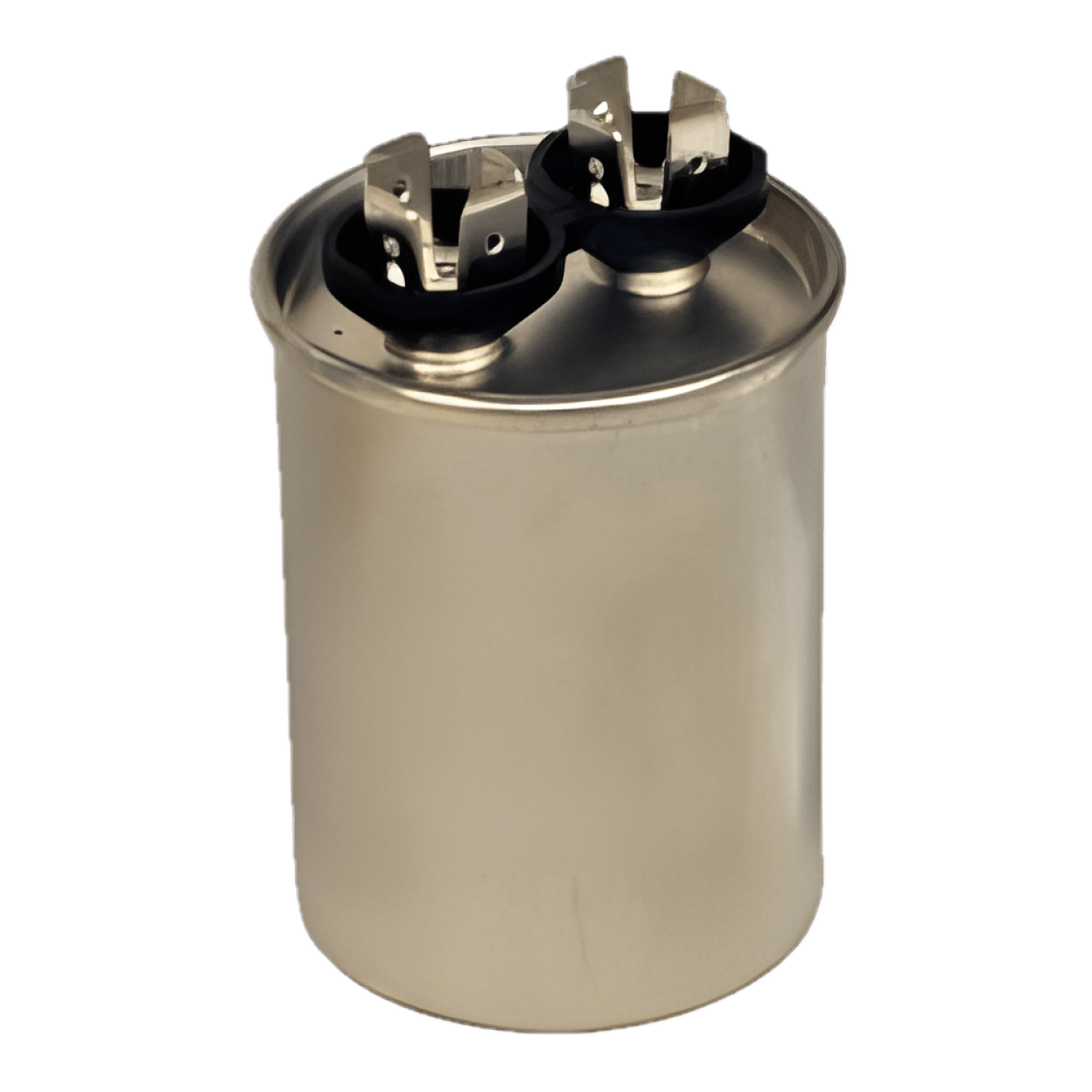

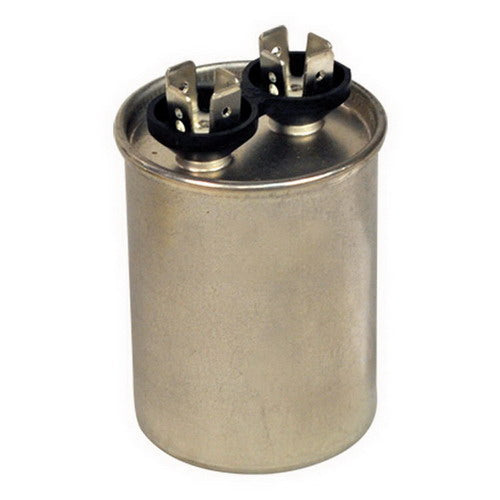

MARS 14234 Mars 15 MFD 440/370VAC Single Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 14234 is a motor run capacitor designed for HVAC applications. This single section round capacitor has a capacitance of fifteen microfarads and can handle voltage ratings of four hundred forty and three hundred seventy volts alternating current. Its compact design measures one point seventy-five inches in diameter and three point thirteen inches in height, making it suitable for tight installation spaces.

• Capacitance: 15 MFD
• Voltage Rating: 440/370VAC
• Temperature Rating: -40 to 70 Deg C

Product Highlights

This capacitor meets industry standards, making it reliable for various HVAC systems.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 14234

Technical Specifications

• Type: Single Section
• Shape: Round
• Frequency Rating: 50/60 Hz
• Terminal: 4
• Material: Aluminum
• Operational Life: 60000 hr
• Standards/Approvals: UL Listed and CSA Certified
