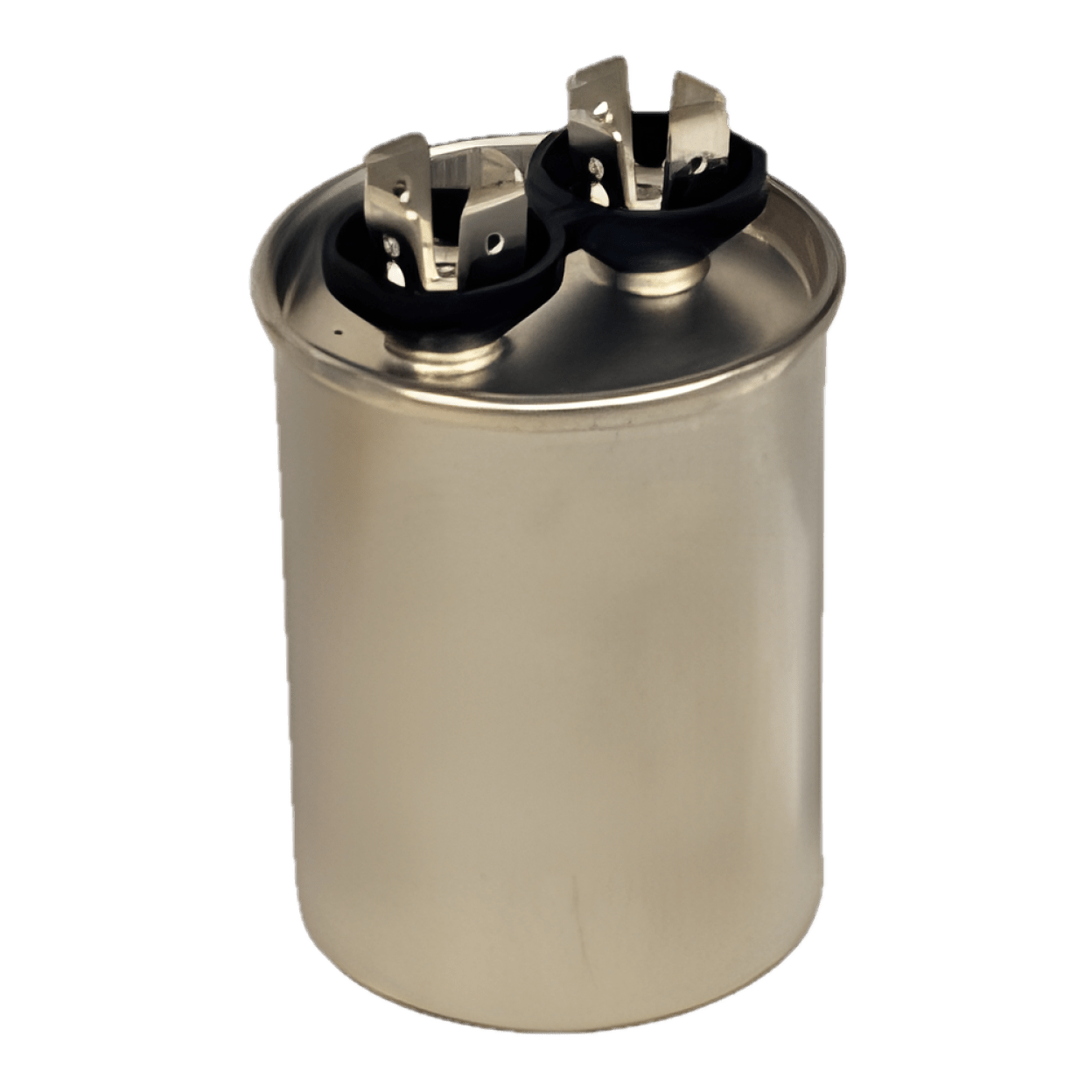

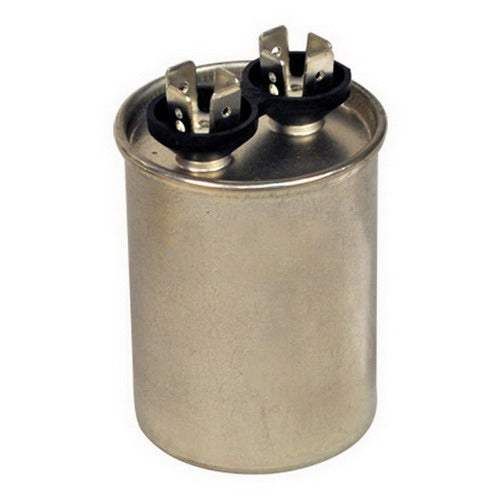

MARS 14105 Mars 5 MFD 440/370VAC Single Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 14105 is a reliable single section round motor run capacitor designed for HVAC applications. This capacitor features a capacitance of five microfarads and operates under a voltage rating of four hundred forty over three hundred seventy volts AC. It is built to efficiently support motor function in various HVAC systems.

• Capacitance of 5 MFD and voltage rating of 440/370VAC.
• Constructed from aluminum for durability and longevity.
• UL Listed and CSA Certified for safety standards.

Product Highlights

This component is essential for the effective operation of HVAC systems, providing necessary starting and running support for motors.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 14105

Technical Specifications

• Capacitance: 5 MFD
• Voltage Rating: 440/370VAC
• Temperature Rating: -40 to 70 Deg C
• Shape: Round
• Material: Aluminum
• Overall Height: 3.130 inch
• Outside Diameter: 1.750 inch
• Operational Life: 60000 hr
• Standards/Approvals: UL Listed and CSA Certified
