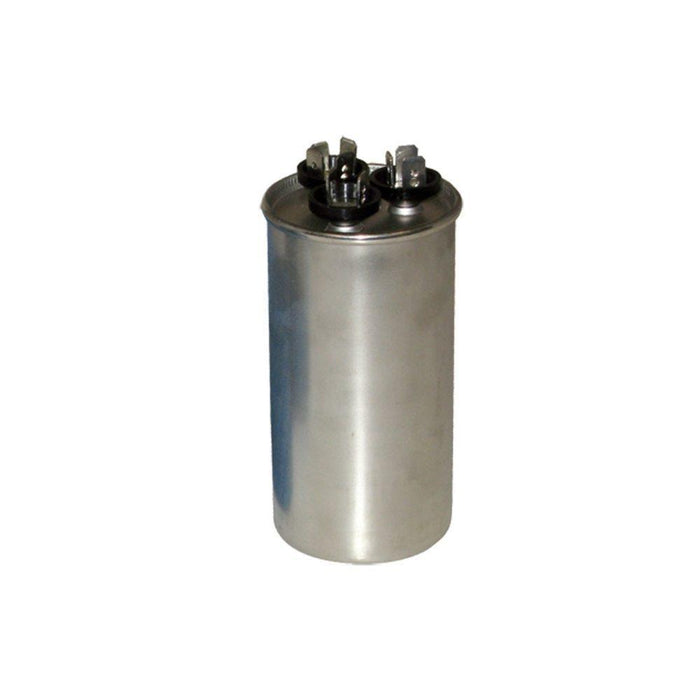

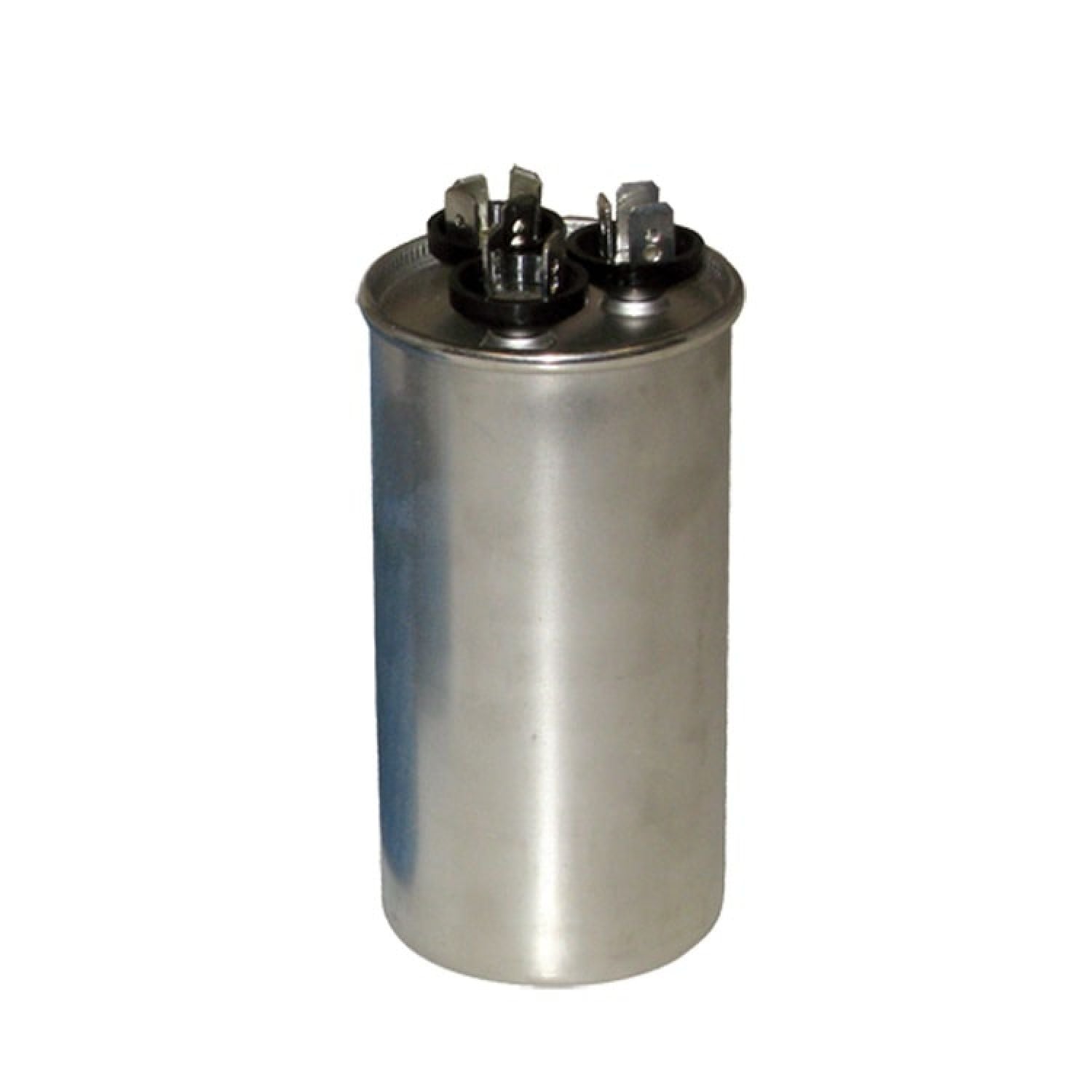

MARS 12779 25/7.5 MFD 440V Dual Section Motor Run Capacitor

Product Description

The MARS 12779 is a dual section motor run capacitor. It is designed for single-phase induction motors to enhance current flow, which helps create a rotating magnetic field. This capacitor houses two capacitors in a single unit, allowing it to support two motors simultaneously. Additionally, it can achieve different microfarad ratings with parallel connections.

• Dual section capacitor
• Suitable for 440V applications
• Round shape

Product Highlights

This product is essential for controlling motor operations efficiently.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 12779

Technical Specifications

• Capacitance: 25/7.5 MFD
• Voltage: 370/440 VAC
• Capacitor Type: Dual Section Motor Run
• Shape: Round
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to 70°C
• Case Height: 3.125 inches
• Width: 2 inches
• Overall Height: 3.625 inches
• Terminals: 4, 3, 2
• Operational Life: 60,000 hours
• Composition: Aluminum
• Approvals: UL Listed; UL Recognized
