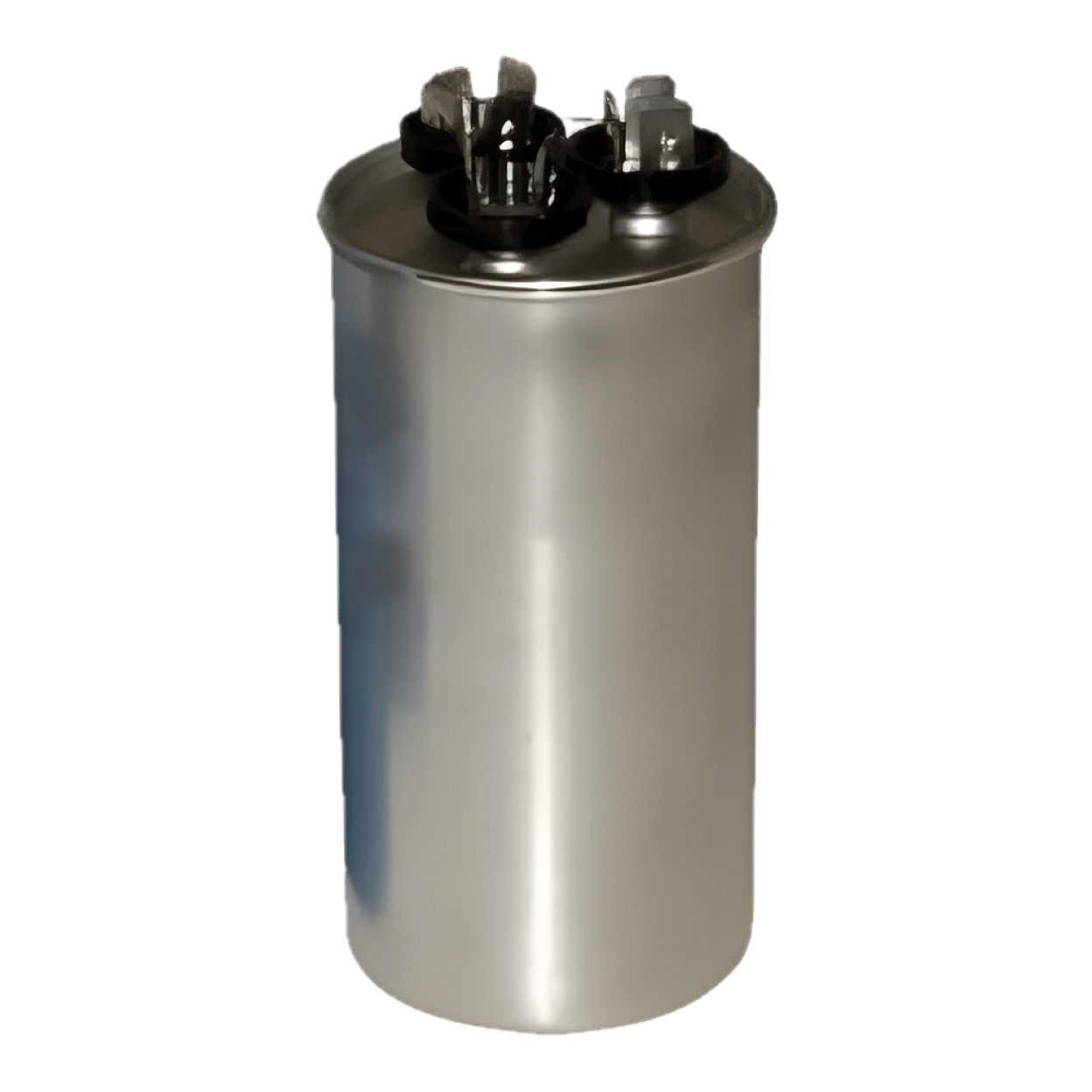

MARS 12739 Jard 40/3 MFD 370VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS 12739 Jard 40/3 MFD 370VAC Dual Section Round Motor Run Capacitor is designed for various HVAC applications. It is a reliable component for dual microfarad necessities. This motor run capacitor features a capacitance of forty and three microfarads with a voltage rating of three hundred seventy volts AC.

• Capacitance of 40/3 MFD
• UL Listed and CSA Certified for safety
• Temperature range -40 to 70 degrees Celsius

Product Highlights

This capacitor is suitable for general replacements in HVAC systems, ensuring efficient operation and performance.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 12739

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 40/3 MFD
• Voltage Rating: 370VAC
• Frequency Rating: 50/60 Hz
• Terminal Connections: 4, 3, 2
• Dimensions: 2 inch diameter x 3.625 inch height
• Material: Aluminum
• Temperature Rating: -40 to 70 degrees Celsius
• Standards/Approvals: UL Listed and CSA Certified
