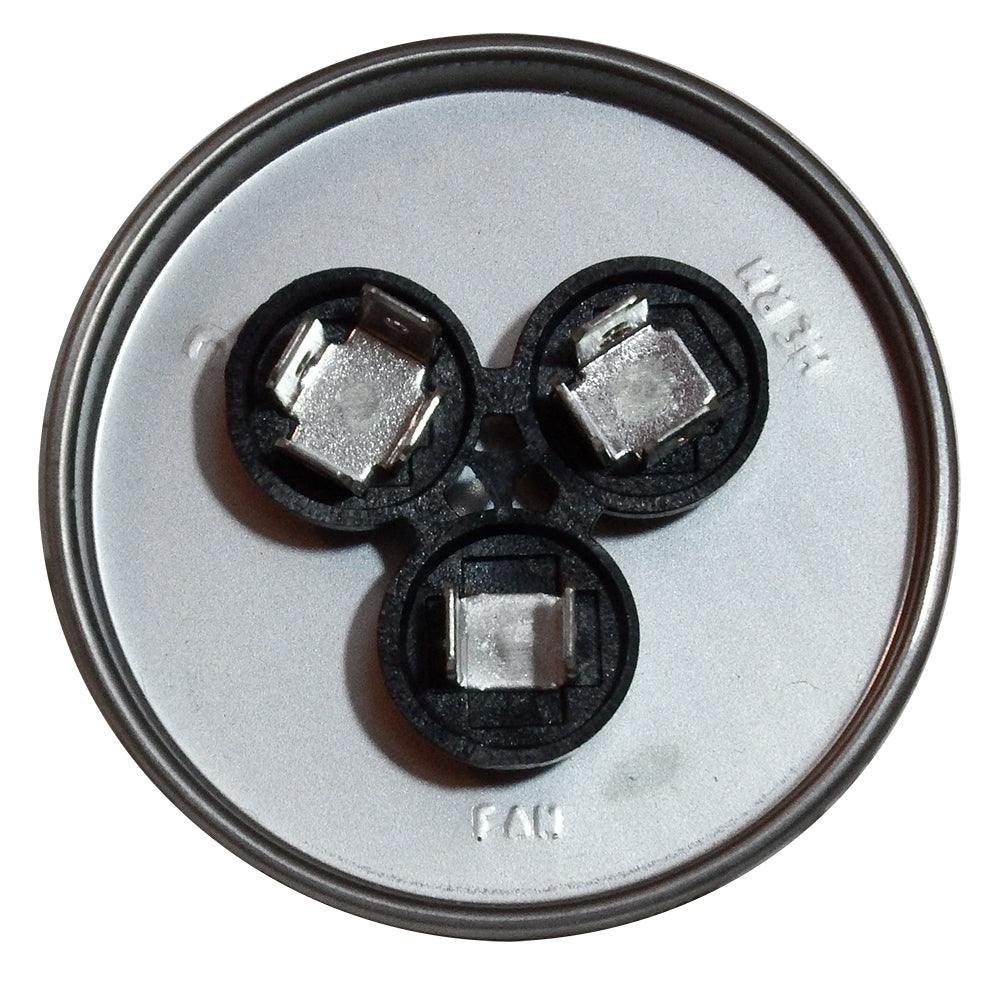

Mars 12113 Miscellaneous Capacitor 25/10 MFD (Round)

Product Description

The MARS 12113 is a dual-section capacitor rated 25/10 MFD at 440 V in a round form factor. It provides two capacitance sections (25 and 10 microfarads) within a single can for use in motor run and HVAC applications requiring dual capacitance. The unit features non-PCB construction, 1/4" quick-disconnect terminals, and an operating temperature range of -40°C to 70°C; approvals include UL and CSA.

• Dual-section capacitance: 25/10 MFD (25 µF + 10 µF) for dual run applications
• Voltage rating: 440 V; round form factor
• Construction and features: non-PCB, 1/4" quick-disconnect terminals, operating temperature -40°C to 70°C; UL and CSA approvals; Pressure Sensitive Interrupter (PSI)

Product Highlights

Dual-section 25/10 µF capacitor rated 440 V in a round MARS 12113 package with non-PCB construction, quick-disconnect terminals, UL and CSA approvals.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 12113
